Other properties
| Accessories for |
Runner block
|
| Nominal size |
20
|
| Maximum dynamic load in y-direction Fy max |
350
N |
| Maximum dynamic load in z-direction Fz max |
100
N |
| Dimension D1 g6 |
10
mm |
| Dimension D2 |
16
mm |
| Dimension D3 |
22
mm |
| Dimension D6 |
9
mm |
| Dimension D7 |
15
mm |
| Dimension e |
0.45
mm |
| Dimension E3 (profiled rail systems) |
33.8
mm |
| Dimension E3 tolerance |
± 0.2
|
| Dimension H1 (profiled rail systems) |
7
|
| Dimension H2 (profiled rail systems) |
8.5
mm |
| Dimension H3 |
4.6
mm |
| Dimension H4 |
16
mm |
| Dimension H5 |
19.5
mm |
| Dimension H6 |
3.2
mm |
| Dimension H8 |
3
mm |
| Dimension S1 (profiled rail systems) |
4
mm |
| Dimension SW1 |
7
mm |
| Dimension SW2 |
2
mm |
| Dimension SW3 |
2
mm |
Description

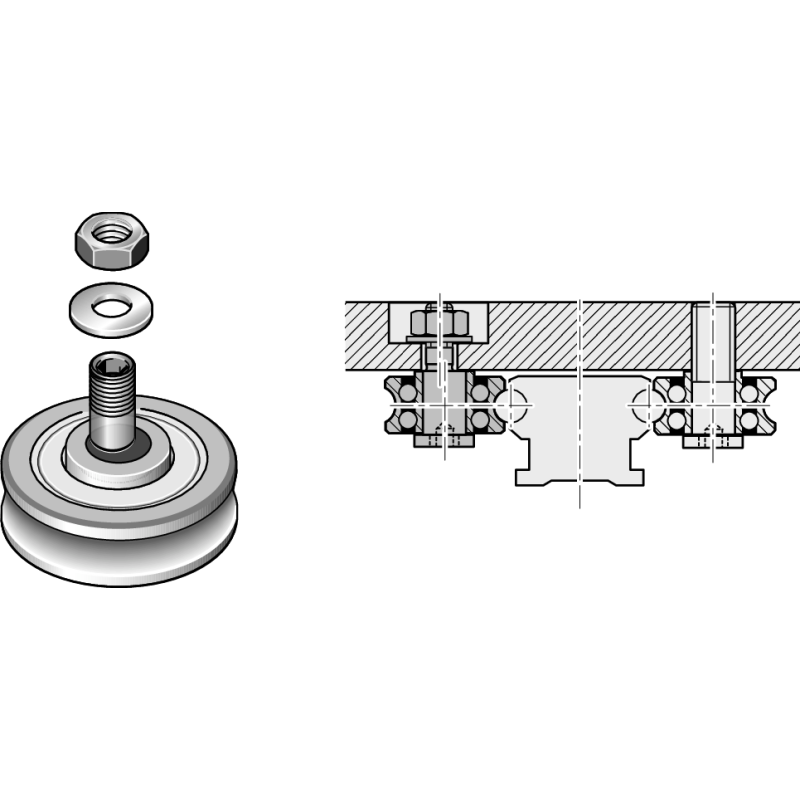

The cam roller is characterized by the following product features:
Size 20
Format: Cam roller with eccentric spigot
Cam roller made of carbon steel CS
Standard load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
No lube connection attached
Standard version
Overall length of the runner block = 22
Interchangeable element
Features
- For mounting customer-built table parts, with central and eccentric spigots for zero-clearance adjustment to the guide rail.
- For applications where the versatile standard range does not offer the optimum solution to your specific problem.
