Physical size and weight
| Net weight |
2380
g |
| Length |
191
mm |
| Width |
70
mm |
| Height |
46
mm |
| Operating pressure, max. |
315
bar |
| Max. flow |
40
l/min |
Other properties
| Connection diagram |
ISO 4401-03-02-0-94
|
| ECLASS_13_Classification |
51-45-02-01
|
| Spool symbol |
P → T
|
| Type of connection |
Subplate mounting
|
| Size |
6
|
| Type of actuation |
Electrical with external electronics
|
| Number of ports |
4
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector, 3-pole (2 + PE) according to EN 175301-803, with mating connector
|
| Hydraulic fluid |
HL,HLP
|
| Seals |
NBR
|
Description

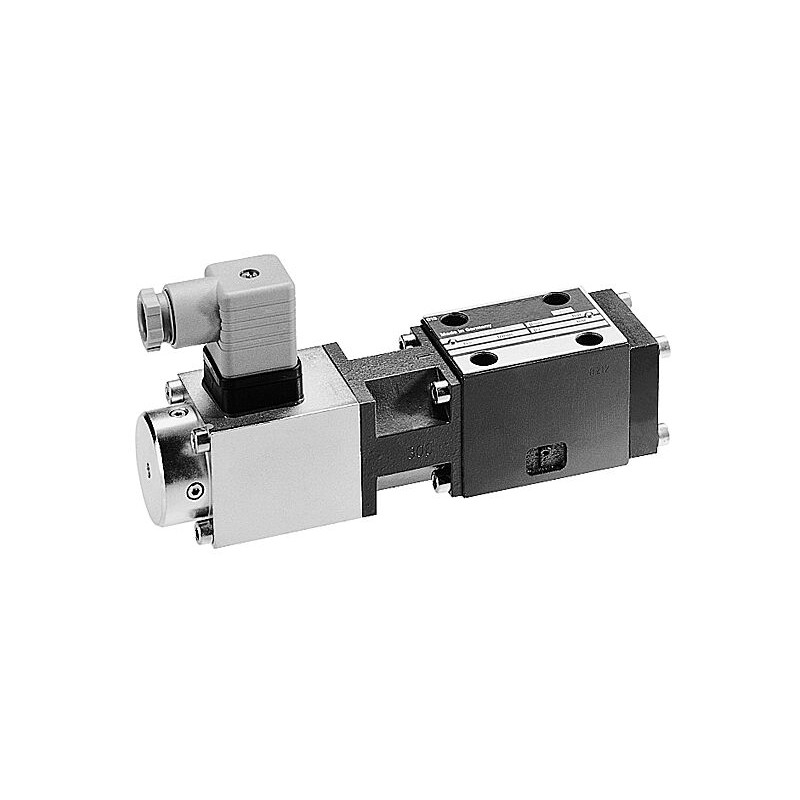

Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.
Features
- Seat valve
- Pilot-operated
- Pressure rating 180 bar
- Digital electronics
Manual (2)
0811402041
(EN)
|
