Fyzická velikost a hmotnost
| Net weight |
22.414
kg |
| Outer diameter D |
190
mm |
Další vlastnosti
| Nominal size |
120
|
| Dynamic load capacity C |
40000
N |
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
100000
N |
| Maximum operating temperature |
+ 100
|
| Minimum operating temperature |
- 30
|
| Dimension D |
190
mm |
| Tolerance D |
±0.1
|
| Dimension dW |
120
mm |
| Dimension G thread |
M8x1
|
| Dimension h |
35
mm |
| Dimension H |
150
mm |
| Tolerance H |
± 0.2
|
| Dimension h1 |
30
mm |
| Dimension H1 (profiled rail systems) |
101.5
|
| Dimension S |
11
mm |
| Dimension S1 (profiled rail systems) |
18
mm |
| Dimension Tk |
165
mm |
Popis

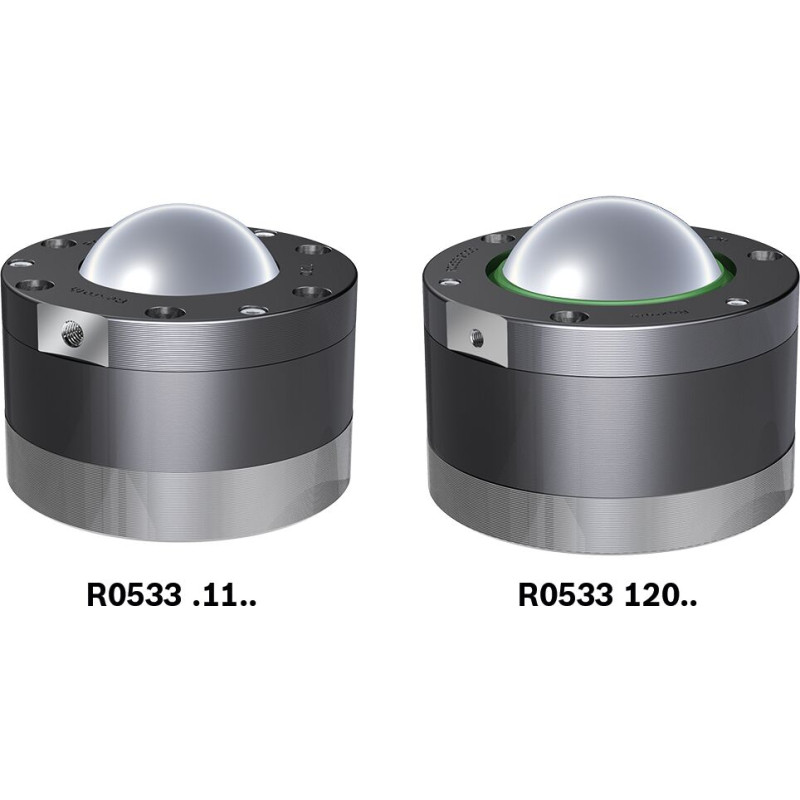

Kuličkový váleček s pouzdrem z masivní oceli
Holý kov, kuličky z oceli pro valivá ložiska
Velikost = 120
Otvor ve dně
Se stěračem
S mazací přípojkou
Funkce
- S pouzdrem z masivní oceli a víkem
- Pro velmi vysoké zatížení a hrubé znečištění
- Se stěračem
- Kovový lesklý povrch
- Kuličky z oceli na valivá ložiska 1.3505
