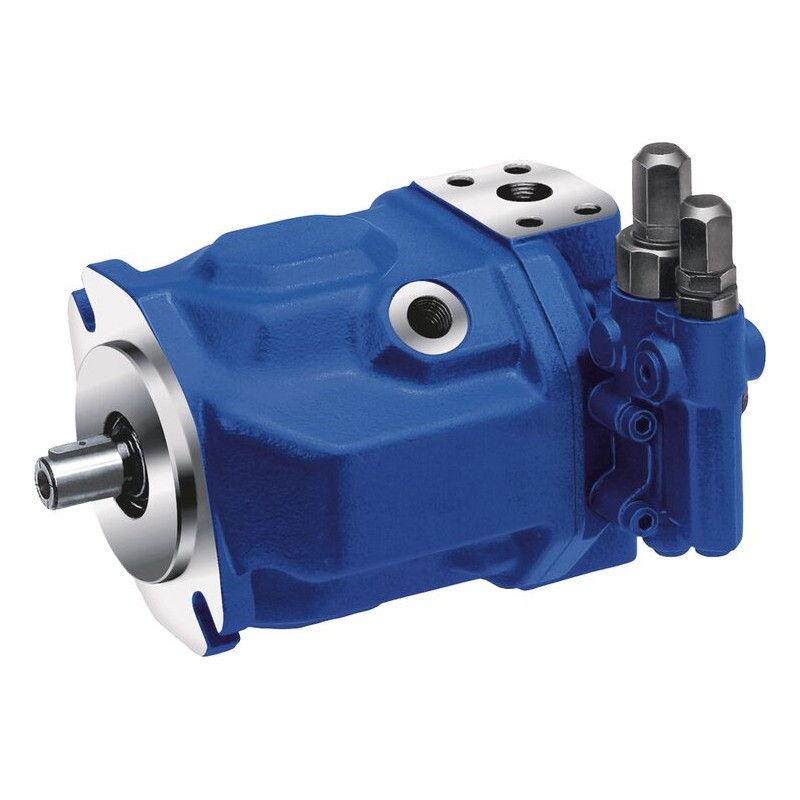

R902403548
AL A10VSO 28 DFR1/31R-PSA12N00

AL A10VSO 28 DFR1/31R-PSA12N00
  • Availability: on request
  • Weight: 18.00 KG
  • Part number: R902403548
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

AL A10VSO 28 DFR1/31R-PSA12N00
Physical size and weight
Net weight 18 kg
Pnom Nominal Pressure 280 bar
Other properties
Type A10V
Operation O
Size 28
Control DRS
Series 3
Direction of rotation R
Nnom Nominal Rotational Speed 3000 rpm
Specifications
  • All-purpose medium pressure pump
  • Size 18 ' 140
  • Nominal pressure 280 bar
  • Maximum pressure 350 bar
  • Open circuit
  • Metric version
Manual (3)
PDF R902403548 (EN)
PDF R902403548 (EN)
PDF R902403548 (EN)
DataSheet (2)
PDF Axial piston variable pump (A)A10VSO series 31 Americas (EN)
PDF Axial piston variable pump A10VSO series 31 (EN)
CAD (3)
File R901501045 (ALL)
File LEFT(G128,10) (ALL)
File R901131448 (ALL)
Pos Name Material Number
1 BASE UNIT
G A10VSO 28 OV /31R-PSA12N00
 R910967404
2 CONTROL VALVE
BA10VDRS &
 R902450439
4 ADAPTER
FEMF-M14X1.5_7/16-20
 R910921653
