R902237348

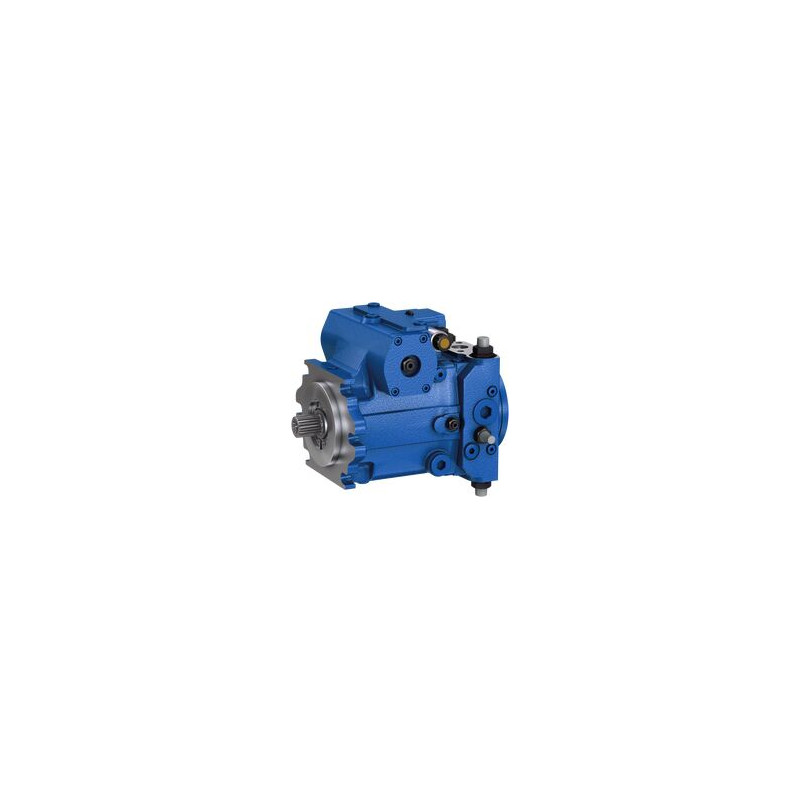

A4VG250EP4D1/32R-NZD10F001SP-S

R902237348
  • Availability: on request
  • Weight: 159.30 KG
  • Part number: R902237348
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R902237348
Physical size and weight
Net weight 159.3 kg
Other properties
Control EP4
Direction of rotation R
Operation G
Product family A4VG
Series 3
Size 31
Type A4V
DataSheet (3)
PDF Axial piston variable pump A4VG series 32 – Europe (EN)
PDF Axial piston variable pump A4VG series 32 – Asia Pacific (EN)
PDF Axial piston variable pump AA4VG Series 32 – Americas (EN)
OperatingInstructions (1)
PDF Axial piston variable pump A4VG series 32 (EN)
Pos Name Material Number
2 CONTROL
VERST.T 5,2-12,5BAR 45231.7212
 R902007359
14 POITIONING PIN
25231.0000
 R902007362
3 CONNECTION PLATE
23131.3200
 R902029543
4 INTERNAL GEAR PUMP
29631.7000
 R902029548
98 SEAL KIT
A4VG250HD/EP/EZ/DA/32
 R902095544
1 ROTARY GROUP
A4V-250 R08 NZ
 R902103735
5 CONTROL MODULE
250EP4P,NH &
 R902115102
13 PIVOT PIN
24819.2300
 R902132714
24 SCREW PLUG
N02.017-M42X2-5.8-PHR
 R909083229
25 O-RING
O-RING N 02.079- 39,34 X 2,62-S-NBR90
 R909085545
63 SCREW PLUG
DCCS10001-M12X1,5-ST+EP-NBR
 R909151692
32 SCREW PLUG
DCCS10001-M14X1,5-ST+EP-NBR
 R909151979
47 SEALING NUT
N02.100-M14X1,5
 R909152975
35 SCREW PLUG
DCCS10001-M10X1-ST+EP-NBR
 R909153364
21 SCREW PLUG
DCCS10001-M18X1,5-ST+EP-NBR
 R909153815
22 SCREW PLUG
DCCS10001-M16X1,5-ST+EP-NBR
 R909153816
33 SCREW PLUG
DCCS10001-M33X2-ST+EP-NBR
 R909153861
20 SCREW PLUG
DCCS10001-M42X2-ST+EP-NBR
 R909153862
46 SETSCREW
N02.033-M14X1,5X30-10.9
 R909157393
28 NOZZLE
RNM02105-M10-2,2
 R909426708
49 NOZZLE
RNM02105-M10-2,2
 R909426708
10 HOUSING
METR. 25231.2000
 R909652198
26 PLUG
RNM02105-M10
 R909831349
31 SLOTTED SPRING PIN
ISO8748-4X14-ST
 R913016375
