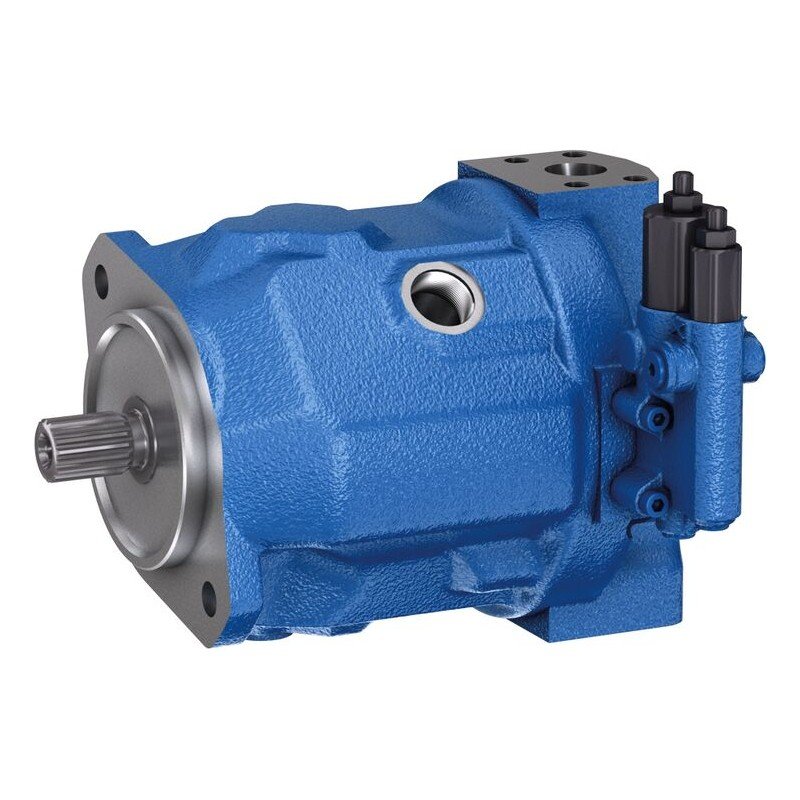

R910946471
A A10V O100 DFSR/31R-PSC12K04 -SO604

A A10V O100 DFSR/31R-PSC12K04 -SO604
  • Availability: on request
  • Weight: 57.00 KG
  • Part number: R910946471
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

A A10V O100 DFSR/31R-PSC12K04 -SO604
Physical size and weight
Net weight 56.223 kg
Pnom Nominal Pressure 280 bar
Other properties
Type A10V
Operation O
Size 100
Control DFSR
Series 3
Direction of rotation R
Nnom Nominal Rotational Speed 2000 rpm
Specifications
  • All-purpose medium pressure pump
  • Size 18 ' 140
  • Nominal pressure 280 bar
  • Maximum pressure 350 bar
  • Open circuit
Manual (1)
PDF R910946471 (EN)
DataSheet (1)
PDF Axial piston variable pump A10VO series 31 (EN)
Pos Name Material Number
1 BASE UNIT
G A10V O100 OV /31R-VSC12K04 LR
 R902521983
2 CONTROL VALVE
BA10VDRSC -S2799
 R902533312
3 CONTROL VALVE
BA10VSR 0,33
 R902533227
5 CONTROL VALVE
BA10VZDR &
 R902455818
6 SOCKET HEAD CAP SCREW
DIN912-M6X65-10.9 #15,5NM
 R910478474
10 PIPING
LR-A10 NG 100-RS -SO128
 R910963797
11 POWER DIAGRAM
LD A10V100 37,0KW 1450U/M 245NM
 R910945417
