R902416688

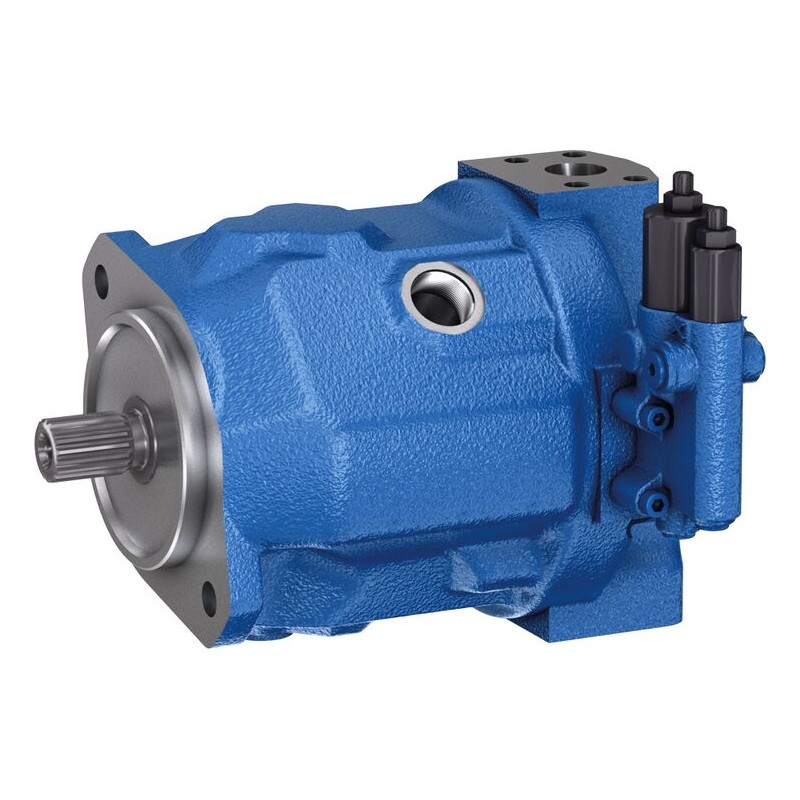

A A10V O100 DFLR/31R-PUC11N00

A A10V O100 DFLR/31R-PUC11N00
  • Availability: on request
  • Weight: 49.50 KG
  • Part number: R902416688
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

A A10V O100 DFLR/31R-PUC11N00
Physical size and weight
Net weight 49.5 kg
Pnom Nominal Pressure 280 bar
Other properties
Type A10V
Operation O
Size 100
Control DFLR
Series 3
Direction of rotation R
Nnom Nominal Rotational Speed 2000 rpm
Specifications
  • All-purpose medium pressure pump
  • Size 18 ' 140
  • Nominal pressure 280 bar
  • Maximum pressure 350 bar
  • Open circuit
Manual (1)
PDF R902416688 (EN)
DataSheet (1)
PDF Axial piston variable pump A10VO series 31 (EN)
Pos Name Material Number
1 BASE UNIT
G A10V O100 OV /31R-PUC11N00 LR
 R902416608
2 CONTROL VALVE
BA10VDRS &
 R902450439
3 CONTROL VALVE
BA10VLR
 R902533217
4 ADAPTER
FEMF-M14X1.5_7/16-20
 R902411210
5 ADAPTER
FEMF-M27X2_1 1/16-12
 R910910741
10 PIPING
LR-A10 NG 100-RH
 R910967185
11 POWER DIAGRAM
LD A10V100 59,0KW 2000U/M 281NM
 R902414425
70 SHIPPING PROTECTION
1 1/4"-MH 77.0.0119
 R902421947
71 SHIPPING PROTECTION
2 1/2"-MS 77.0.0122
 R902421950
72 SEAL SCREW
N02.131-M27X2
 R902602012
73 SEAL SCREW
N02.131-M14X1,5
 R902602008
75 NAMEPLATE
N12.009-1-A-AL
 R909830326
