R902407749

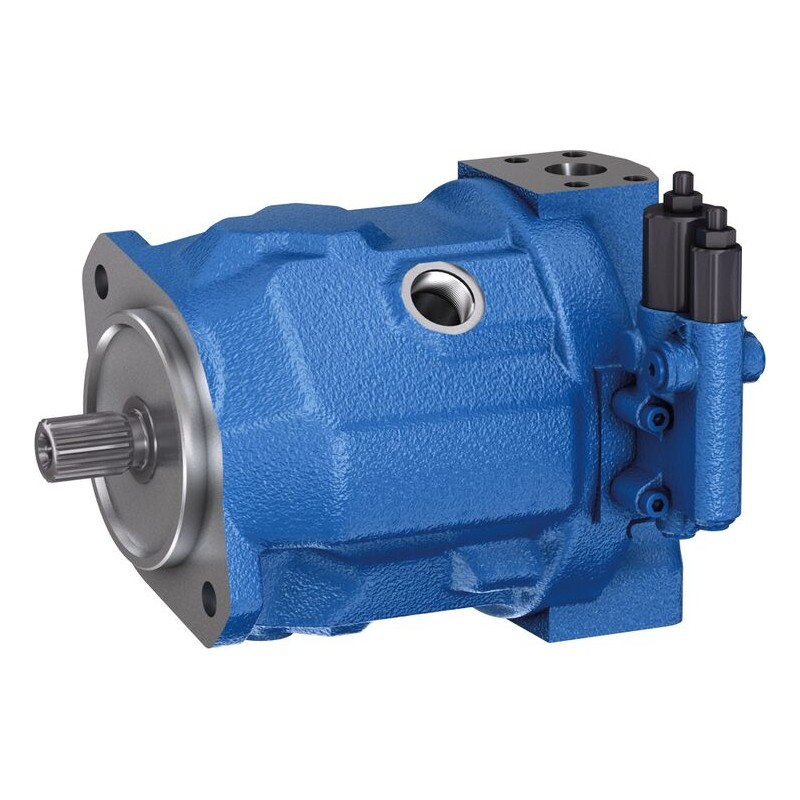

A A10V O 28 DFR1/31R-PRC12K68 -SO420

A A10V O 28 DFR1/31R-PRC12K68 -SO420
  • Availability: on request
  • Weight: 19.30 KG
  • Part number: R902407749
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

A A10V O 28 DFR1/31R-PRC12K68 -SO420
Physical size and weight
Net weight 19.3 kg
Pnom Nominal Pressure 280 bar
Other properties
Type A10V
Operation O
Size 28
Control DFR1
Series 3
Direction of rotation R
Nnom Nominal Rotational Speed 3000 rpm
Specifications
  • All-purpose medium pressure pump
  • Size 18 ' 140
  • Nominal pressure 280 bar
  • Maximum pressure 350 bar
  • Open circuit
DataSheet (1)
PDF Axial piston variable pump A10VO series 31 (EN)
Manual (1)
PDF R902407749 (EN)
Pos Name Material Number
1 BASE UNIT
G A10V O 28 OV /31R-PRC12K68
 R910975103
2 CONTROL VALVE
BA10VDRS &
 R902450439
70 SHIPPING PROTECTION
3/4"-MS 77.0.0116
 R902421944
71 SHIPPING PROTECTION
1 1/4"-MS 77.0.0118
 R902421946
72 SEAL SCREW
RNM02132-3/4-16UNF
 R902602016
73 SEAL SCREW
RNM02132-7/16-20UNF
 R902602014
74 FLANGE COVER
DCCS10005-101-2-NBR-DM
 R902602977
75 NAMEPLATE
N12.009-1-A-AL
 R909830326
