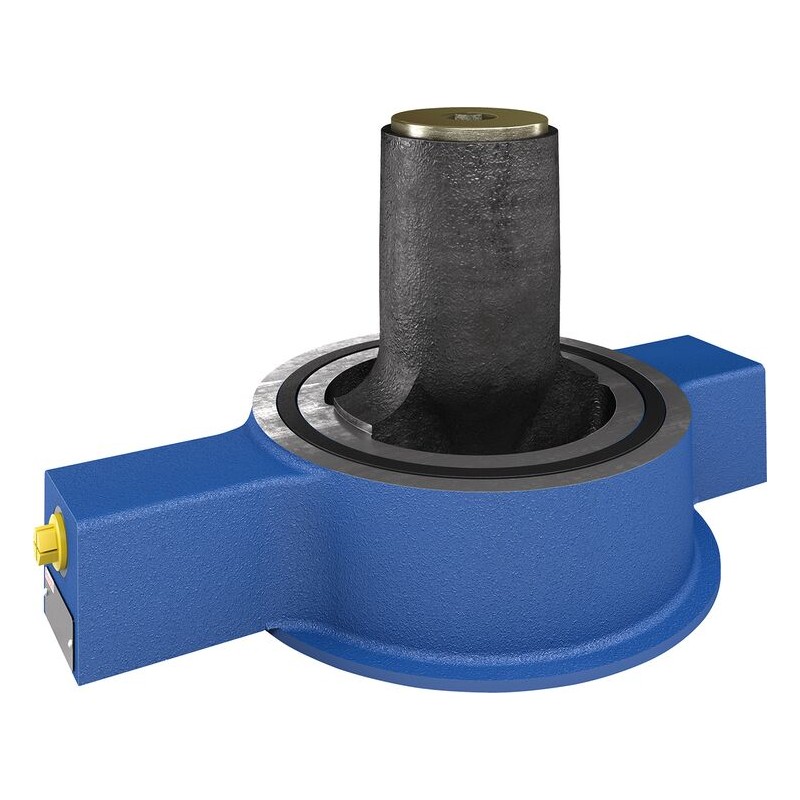

R900902679
ZSFW32F0-1-1X/M/01

ZSFW32F0-1-1X/M/01
  • Availability: on request
  • Weight: 3.44 KG
  • Part number: R900902679
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

ZSFW32F0-1-1X/M/01
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 200 l/min
Net weight 3.44 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 4401-03-02-0-05
ECLASS_13_Classification 51-44-04-04
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family ZSF(W)
Seals NBR
Size 32
Spool symbol A → B
Type of actuation with hydraulic actuation
Type of connection Flange connection
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • Seat valve
  • without pre-decompression
  • Pipe thread according to ISO 228-1
CAD (1)
File R900902679 (ALL)
DataSheet (1)
PDF Prefill valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
ZSF/ZSFW 32.-1X/
 R961007011
