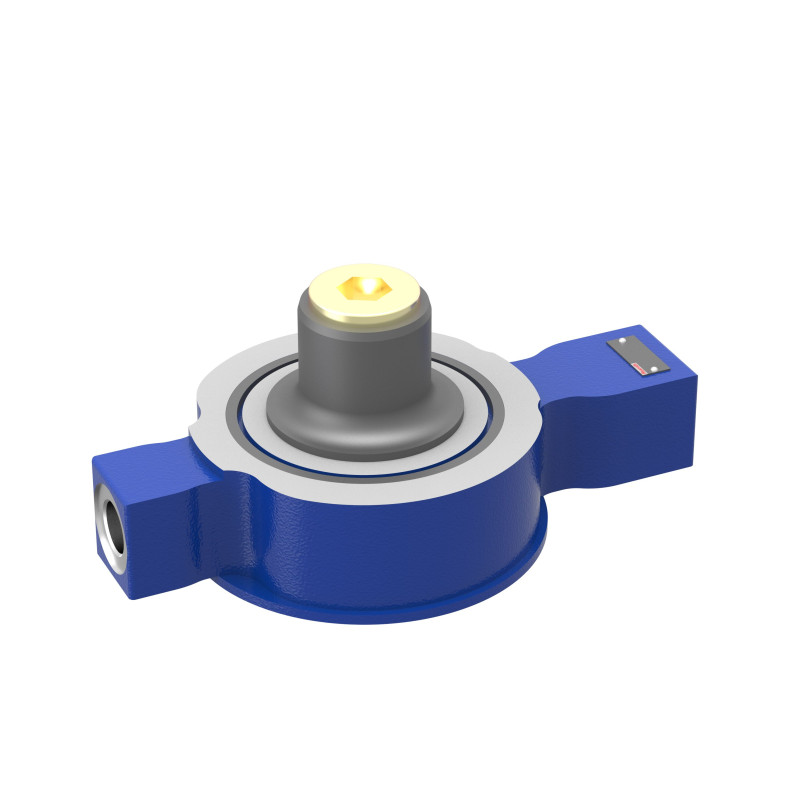

R901505621
ZSF80F0-1-1X/M/01D10

R901505621
  • Availability: on request
  • Weight: 10.00 KG
  • Part number: R901505621
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R901505621
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 1200 l/min
Net weight 7 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram According to ISO 228-1
ECLASS_13_Classification 51-44-04-04
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family ZSF(W)
Seals NBR
Size 80
Spool symbol A → B
Type of actuation with mechanical actuation
Type of connection Sandwich plate
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • Seat valve
  • Pilot-operated
CAD (1)
File R901505621 (ALL)
DataSheet (1)
PDF Prefill valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
ZSF/ZSFW 80.-1X/
 R900769289
998 SPARE PART
DRV BC1-1,0
 R961012351
