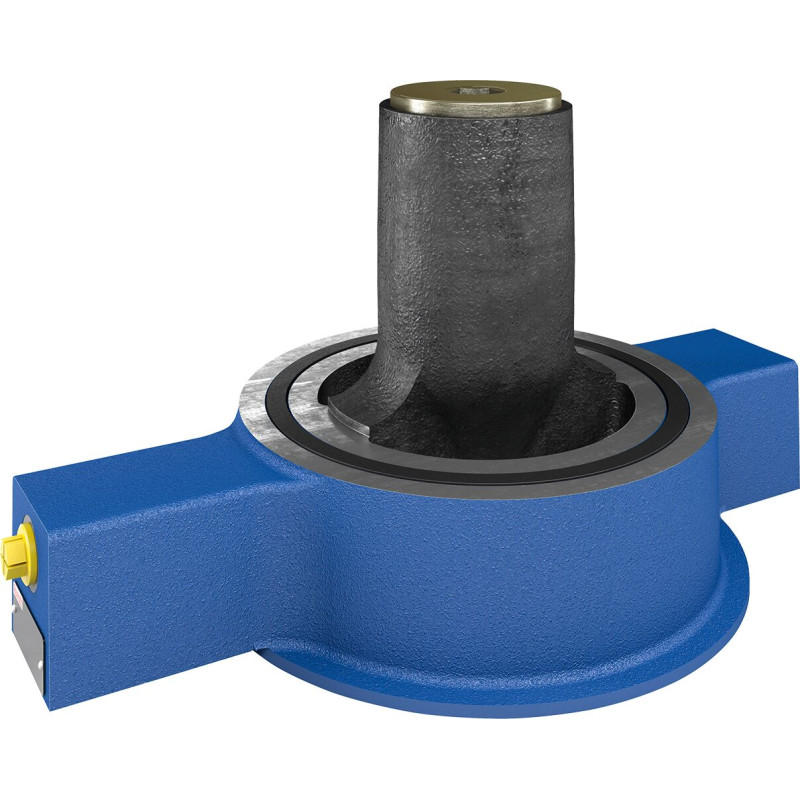

R901505618
ZSF63F0-1-1X/M/01D08

R901505618
  • Availability: on request
  • Weight: 7.00 KG
  • Part number: R901505618
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R901505618
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 800 l/min
Net weight 7 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram According to ISO 228-1
ECLASS_13_Classification 51-44-04-04
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family ZSF(W)
Seals NBR
Size 63
Spool symbol A → B
Type of actuation with mechanical actuation
Type of connection Sandwich plate
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • Seat valve
  • Pilot-operated
CAD (1)
File R901505618 (ALL)
DataSheet (1)
PDF Prefill valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
ZSF/ZSFW 63.-1X/
 R961007013
998 SPARE PART
DRV BC1-0,8
 R961012350
