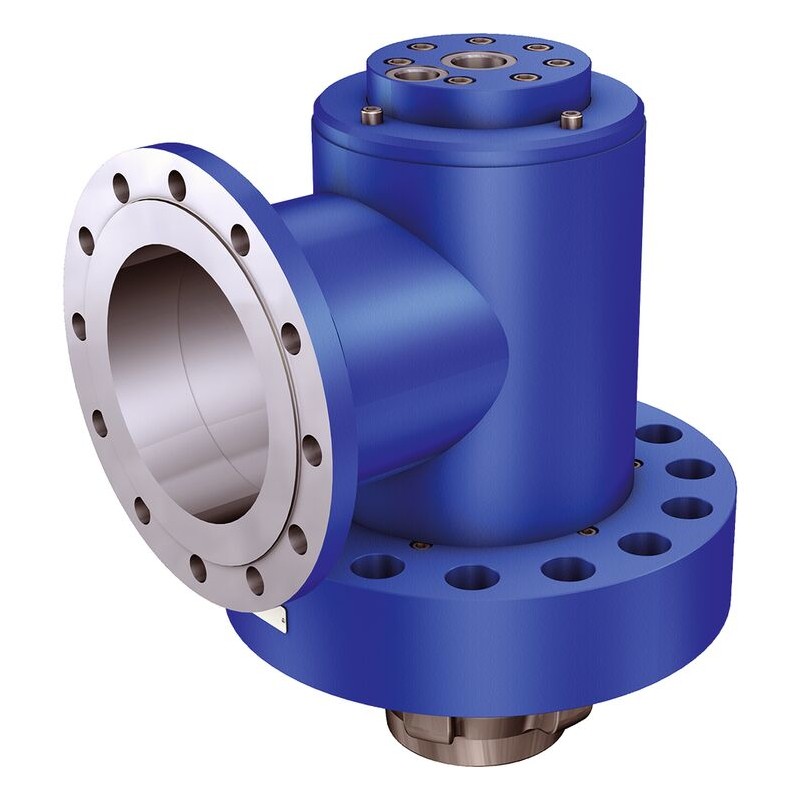

R900732929
SFS300A0-1-4X/

SFS300A0-1-4X/
  • Availability: on request
  • Weight: 655.00 KG
  • Part number: R900732929
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

SFS300A0-1-4X/
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 14000 l/min
Net weight 655 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram Flange type 11 PN 16 according to EN 1092-1
ECLASS_13_Classification 51-44-04-04
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family SFS
Seals NBR
Size 300
Spool symbol A → B
Type of actuation with hydraulic actuation
Type of connection Flange connection
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • Seat valve
  • Pilot-operated
DataSheet (2)
PDF Prefill valve, actively operatable (EN)
PDF Prefill valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
SFS 300.-1-4X/
 R961002009
