R901088382

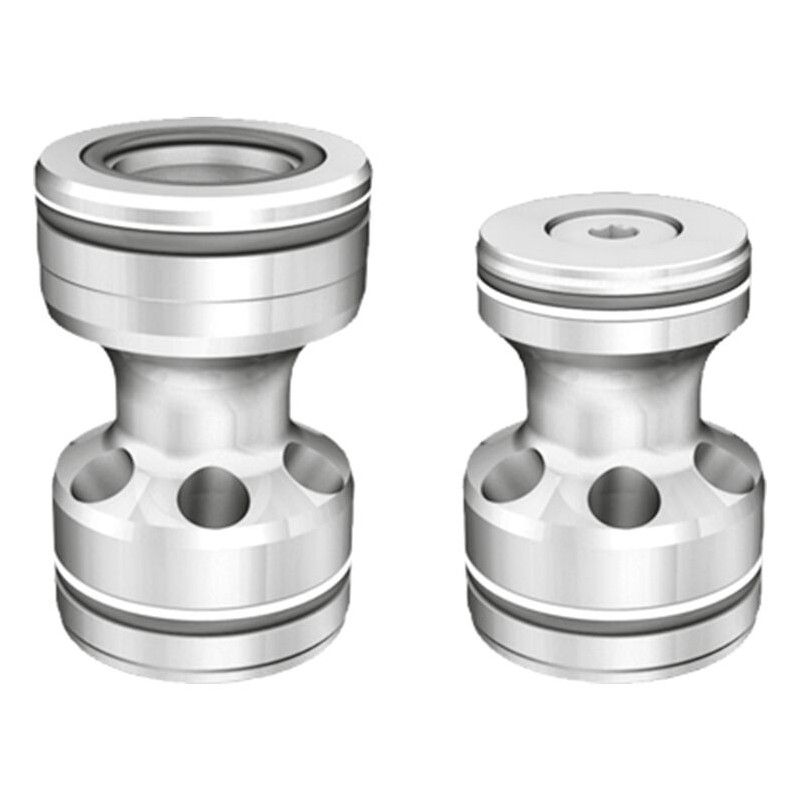

SFE100Z0-1X/M

SFE100Z0-1X/M
  • Availability: on request
  • Weight: 22.36 KG
  • Part number: R901088382
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

SFE100Z0-1X/M
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 1400 l/min
Net weight 22.36 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 7368
ECLASS_13_Classification 51-44-04-04
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family SFE
Seals NBR
Size 100
Spool symbol A → B
Type of actuation with hydraulic actuation
Type of connection Cartridge valve
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • Seat valve
  • Pilot-operated
CAD (1)
File R901088382 (ALL)
DataSheet (2)
PDF Pre-fill valve (EN)
PDF Prefill valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
SFE 100.-1X/
 R961004626
