R900978200

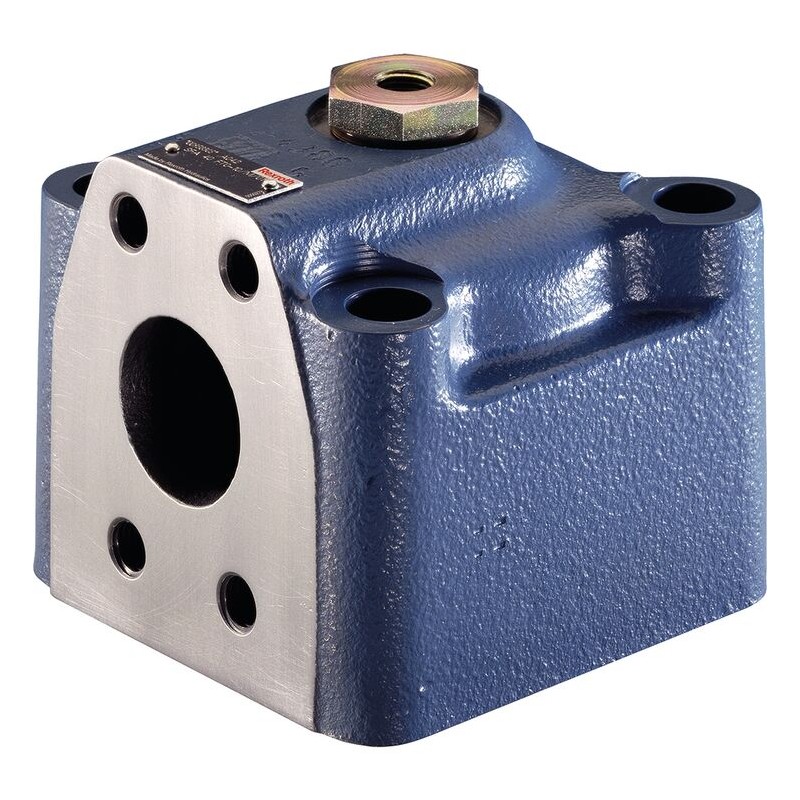

SFA63F1-1X/M/01

SFA63F1-1X/M/01
  • Availability: on request
  • Weight: 15.20 KG
  • Part number: R900978200
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

SFA63F1-1X/M/01
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 15.2 kg
Operating pressure, max. 350 bar
Max. flow 800 l/min
Other properties
Connection diagram ISO 6162/1
ECLASS_13_Classification 51-44-04-04
Product family SFA
Spool symbol A → B
Type of connection Flange connection
Size 63
Type of actuation with hydraulic actuation
Number of ports 2
Number of switching positions 2
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Specifications
  • Size 25 ' 80
  • Component series 1X
  • Maximum operating pressure 350 bar
  • Maximum flow 1200 l/min
Manual (3)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF Prefill valve (EN)
PDF c6e9e013-c7dd-4e4c-a8a7-d7057d8fece6_original (EN)
CAD (1)
File R900978200 (ALL)
Pos Name Material Number
999 SEAL KIT
SFA 63.-1X/
 R961004238
