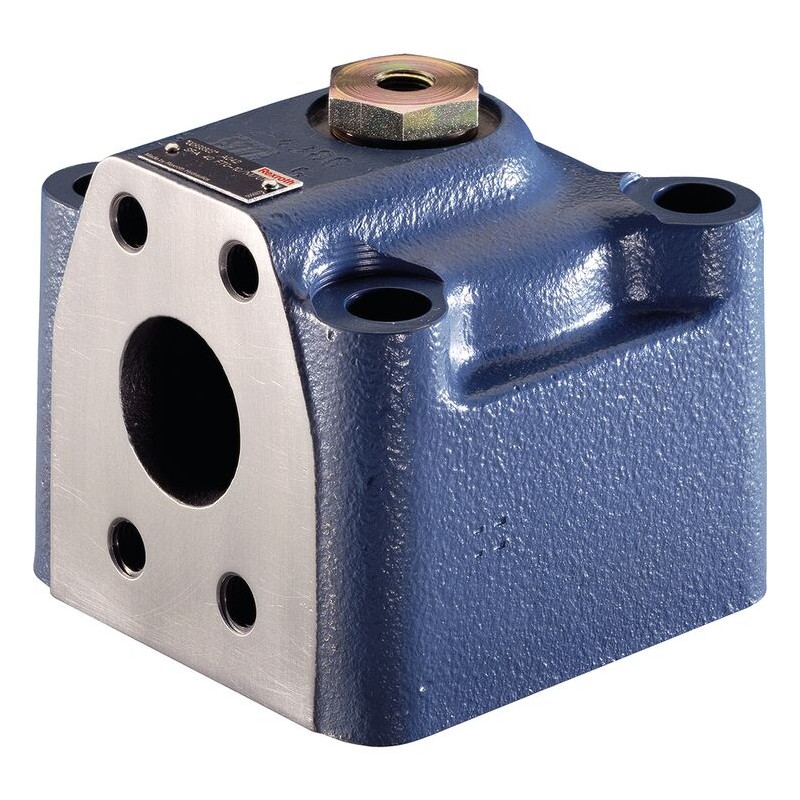

R900964466
SFA40F1-1X/M/01

SFA40F1-1X/M/01
  • Availability: on request
  • Weight: 6.48 KG
  • Part number: R900964466
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

SFA40F1-1X/M/01
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 300 l/min
Net weight 6.48 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 6162/1
ECLASS_13_Classification 51-44-04-04
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Number of ports 2
Number of switching positions 2
Product family SFA
Seals NBR
Size 40
Spool symbol A → B
Type of actuation with hydraulic actuation
Type of connection Flange connection
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • with pre-decompression
  • Seat valve
  • without tank bore
CAD (1)
File R900964466 (ALL)
DataSheet (3)
PDF Prefill valve (EN)
PDF Reliability characteristics MTTFD regarding the functional safety according to EN ISO 13849 (EN)
PDF Prefill valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
SEAL KIT SFA 40.-1X/
 R961004236
