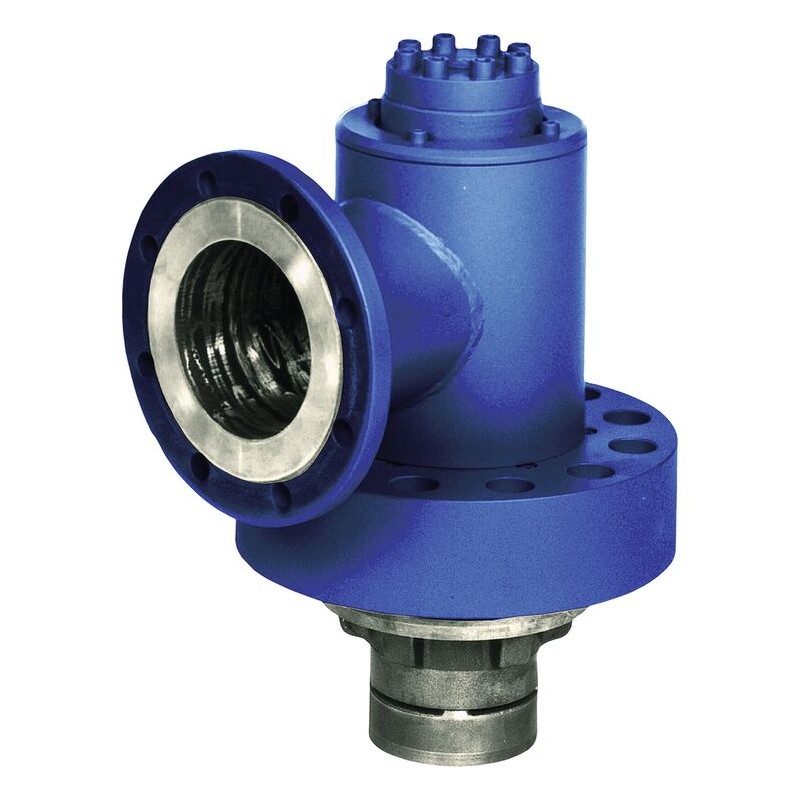

R900922805
SF125K0-1-4X/

SF125K0-1-4X/
  • Availability: on request
  • Weight: 47.28 KG
  • Part number: R900922805
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

SF125K0-1-4X/
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 47.28 kg
Operating pressure, max. 350 bar
Max. flow 3800 l/min
Other properties
Connection diagram ISO 228-1
ECLASS_13_Classification 51-44-04-04
Product family SF
Spool symbol A → B
Type of connection Cartridge valve
Size 125
Type of actuation with hydraulic actuation
Number of ports 4
Number of switching positions 2
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.

Features
  • Seat valve
  • without pre-decompression
DataSheet (1)
PDF Prefill valve (EN)
Manual (3)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF c6e9e013-c7dd-4e4c-a8a7-d7057d8fece6_original (EN)
PDF 733f4e6e-0e06-41c9-8e0d-507cdbf7e597_original (EN)
Pos Name Material Number
999 SEAL KIT
SF 125.-1-4X/
 R900312763
