Physical size and weight
| Net weight |
34.1
kg |
| Operating pressure, max. |
315
bar |
Other properties
| ECLASS_13_Classification |
51-47-01-02
|
| Hydraulic fluid |
HL,HLP,HVLP
|
| Number of vertical stackings |
8
|
| Port size |
G1/2
|
| Product family |
HSR 10
|
| Size |
10
|
| Surface coating |
Galvanic coating EN ISO 19598
|
Description

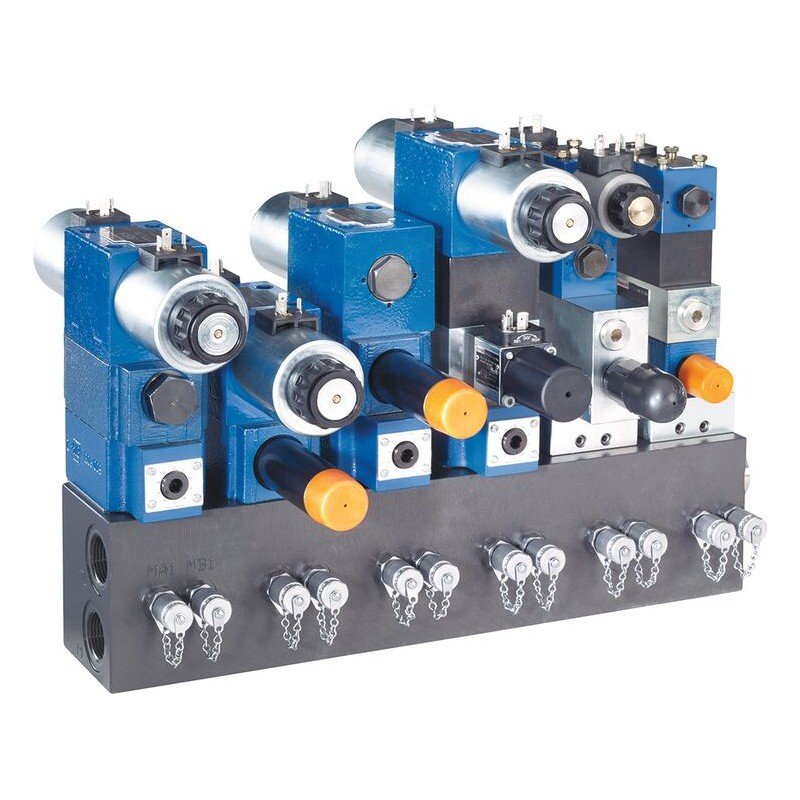

Compact hydraulic controls for 8 vertical stackings of size 10
Features
- Base element for ready-for-connection controls in vertical stacking design
- Compact hydraulic control block
- Common pump and tank line
- Separate actuator ports of the stations
