Physical size and weight
| Net weight |
4.14
kg |
| Operating pressure, max. |
315
bar |
Other properties
| ECLASS_13_Classification |
51-47-01-02
|
| Product family |
HSR 06M-40
|
| Port size |
G3/8
|
| Size |
6
|
| Hydraulic fluid |
HLP,HETG,HEES,HEPG,HFDU,HFDR,HFA-E,HFC
|
| Surface coating |
Phosphate coating DIN EN 12476
|
Description

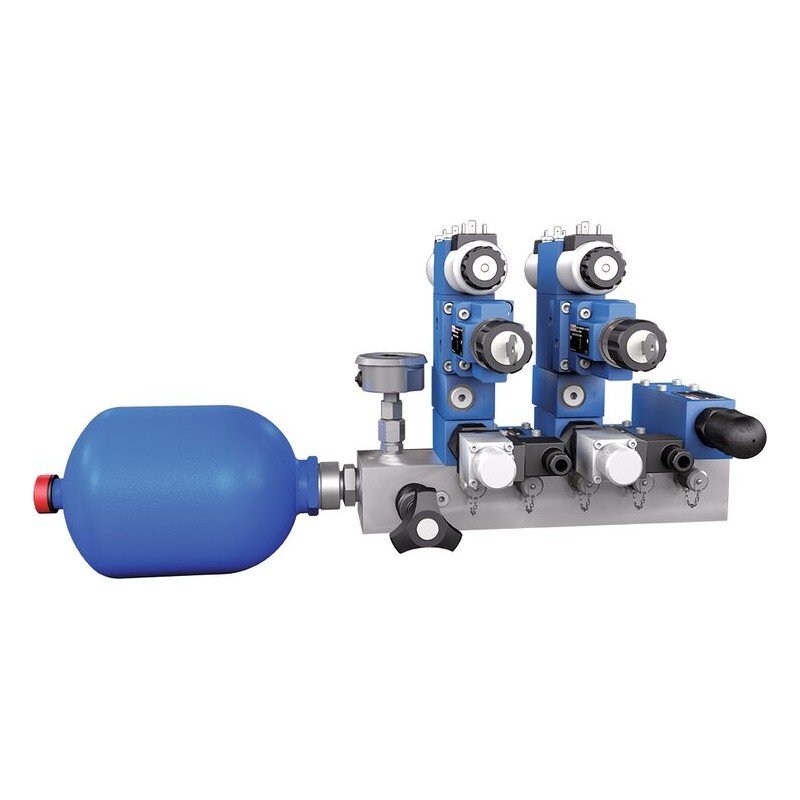

Compact hydraulic controls for 1 vertical stacking of size 6, incl. installation bore for one pressure relief valve and pressure gauge
Features
- Base element for ready-for-connection controls in vertical stacking design
- Pressure relief valve type DBD in pressure line P
- Connection possibility of a pressure gauge in pressure line P
- Measuring ports in the actuator lines
