Physical size and weight
| Net weight |
1.94
kg |
| Operating pressure, max. |
315
bar |
Other properties
| ECLASS_13_Classification |
51-47-01-02
|
| Product family |
HSR 06
|
| Port size |
G3/8
|
| Size |
6
|
| Hydraulic fluid |
HL,HLP,HVLP
|
| Surface coating |
Phosphate coating EN ISO 9717
|
Description

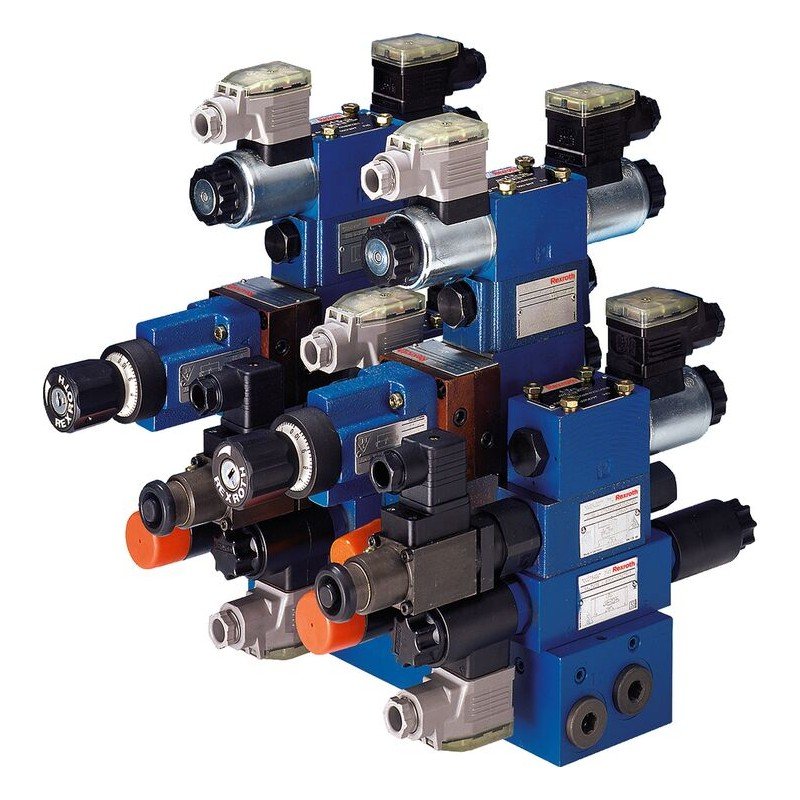

Compact hydraulic controls for 1 vertical stacking of size 6
Features
- Base element for ready-for-connection controls in vertical stacking design
- Compacter hydraulic control block
- Common pump and tank line
- Separate actuator ports of the stations
