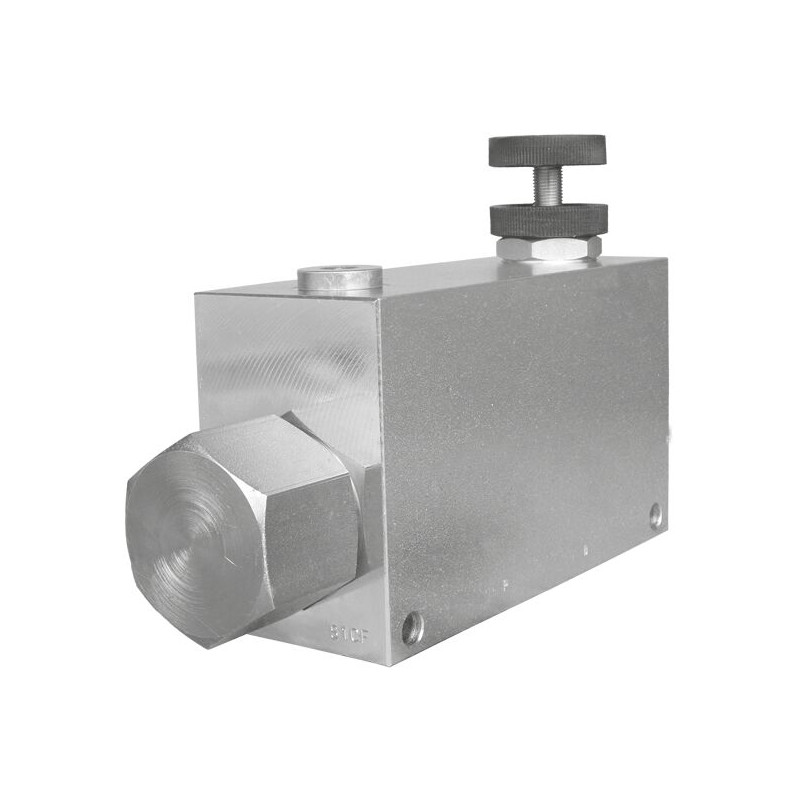

R930004478
0MC203700400000 A-VRFC3-V-34

R930004478
  • Availability: on request
  • Weight: 4.20 KG
  • Part number: R930004478
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004478
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 150 l/min
Net weight 4.2 kg
Nominal flow 150 l/min
Operating pressure, max. 350 bar
Other properties
Adjustment options Handknob and locknut
Direct - Pilot Pilot operated
Hydraulic fluid HL,HLP
Ports G 3/4
Ports number 3
Product family A-VRFC3 (G 1/2-G 3/4)
Product family classification Flow regulator 3 way, pressure compensated
Product family type VRFC3
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Port: G 3/4
