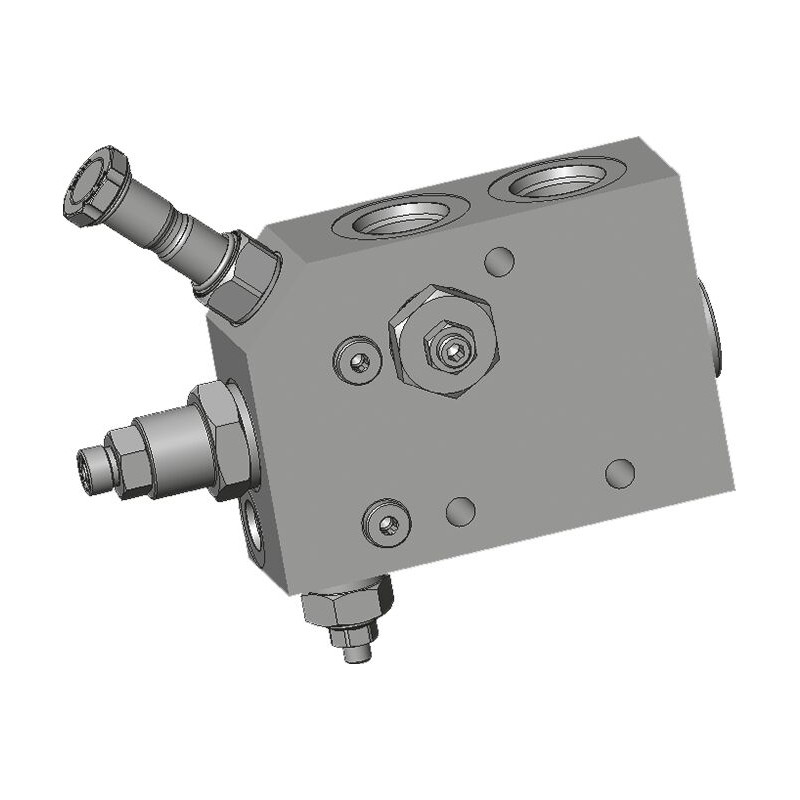

R930005433
0M4321805720000-AVRFC3CVEI-VS5LSVU-342B

R930005433
  • Availability: on request
  • Weight: 4.50 KG
  • Part number: R930005433
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930005433
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 4.498 kg
Operating pressure, max. 350 bar
Max. flow 140 l/min
Nominal flow 140 l/min
Adjustable pressure range 105-210
Pressure setting 200 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification 3-way heavy duty flow control, with pressure compensated, solenoid and load sensing controlled priority flow
Product family type VRFC3C-VEI-VS
Product family A-VRFC3C-VEI-VS-LS
Ports number 4
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Pilot operated
Coil D36
Coil integrated To be ordered separately
Ports 1 1/16”-12 UN-2B (SAE12)
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 140 l/min (37 gpm)
  • Port: 1 1/6-12 UN-2B
Manual (1)
PDF 3-Way heavy duty flow control, with pressure compensated, solenoid and load sensing controlled priority flow – A-VRFC3C-VEI-VS-LS (EN)
