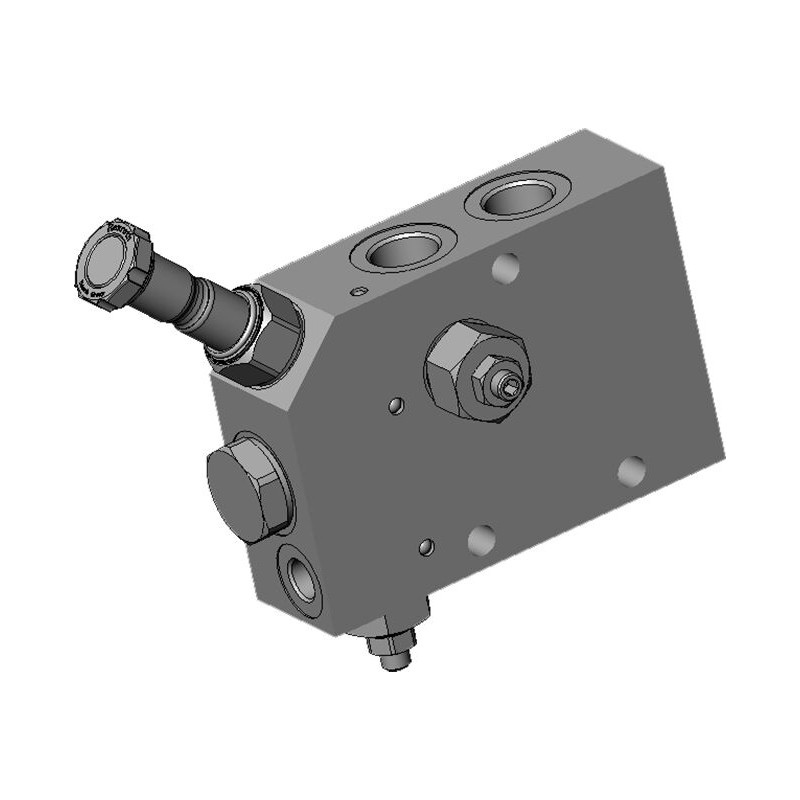

R930067646
0M432080033500D-A-VRFC3C-VEI-VS5-PT123&

R930067646
  • Availability: on request
  • Weight: 3.40 KG
  • Part number: R930067646
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930067646
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.4 kg
Operating pressure, max. 350 bar
Max. flow 100 l/min
Nominal flow 100 l/min
Adjustable pressure range 350-460
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification 3-way heavy duty flow control, with pressure compensated and solenoid controlled priority flow
Product family type VRFC3C-VEI-VS
Product family A-VRFC3C-VEI-VS
Ports number 3
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Pilot operated
Coil D36
Coil integrated To be ordered separately
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 100 l/min (26 gpm)
  • Port: G 1/2
Manual (1)
PDF 3-Way heavy duty flow control, with pressure compensated and solenoid controlled priority flow – A-VRFC3C-VEI-VS (EN)
