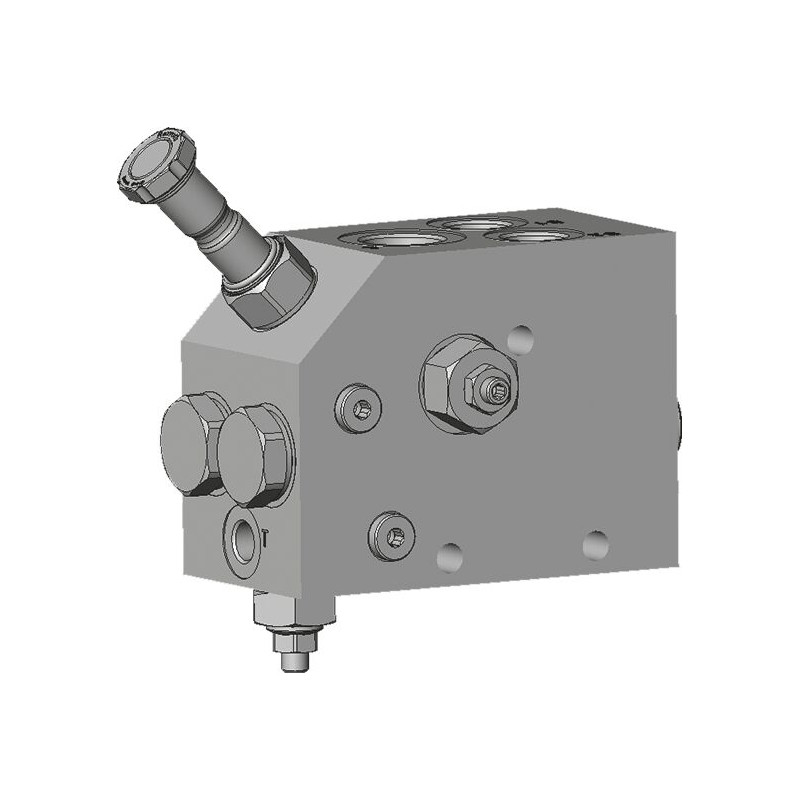

R930069300
0M431280053500A-A-VRFC3C-VEI-VSBN-2P-10&

R930069300
  • Availability: on request
  • Weight: 18.20 KG
  • Part number: R930069300
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 3.

R930069300
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 18.2 kg
Operating pressure, max. 350 bar
Max. flow 390 l/min
Nominal flow 390 l/min
Adjustable pressure range 175-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification 5-way heavy duty flow control, with pressure compensated and solenoid controlled priority flow for two pumps systems
Product family type VRFC3C-VEI-VS
Product family A-VRFC3C-VEI-VSAN
Ports number 5
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Pilot operated
Coil D36
Coil integrated To be ordered separately
Ports G 1 1/4
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 390 l/min (103 gpm)
  • Port: G 1 1/4
Manual (1)
PDF 5-Way heavy duty flow control, with pressure compensated and solenoid controlled priority flow, for two pumps systems – A-VRFC3C-VEI-VS (EN)
