R930004328
0M4203700400000 VRFC3C-V-34

R930004328
  • Availability: on request
  • Weight: 2.49 KG
  • Part number: R930004328
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004328
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2.487 kg
Operating pressure, max. 210 bar
Max. flow 150 l/min
Nominal flow 150 l/min
Other properties

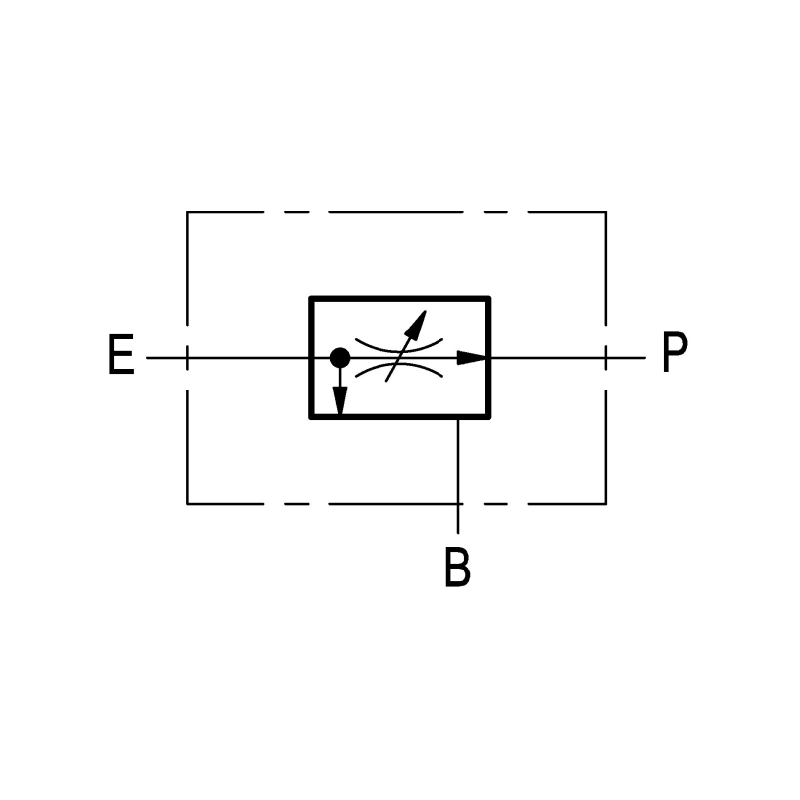

Product family classification Flow regulator 3 way, combination type pressure compensated
Product family type VRFC3C
Product family VRFC3C (G 3/8-G 1/2-G 3/4-G 1)
Ports number 3
Type of connection Threaded connection
Direct - Pilot Pilot operated
Adjustment options Handknob and locknut
Ports G 3/4
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Port: G 3/4
Manual (1)
PDF Flow regulator, 3-way, combination type, pressure compensated – VRFC3C (G 3/8, G 1/2, G 3/4, G1) (EN)
