R930004295
0M3903400300000 VRFC3-M-VU-12

R930004295
  • Availability: on request
  • Weight: 1.35 KG
  • Part number: R930004295
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004295
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.353 kg
Operating pressure, max. 210 bar
Max. flow 90 l/min
Nominal flow 90 l/min
Other properties

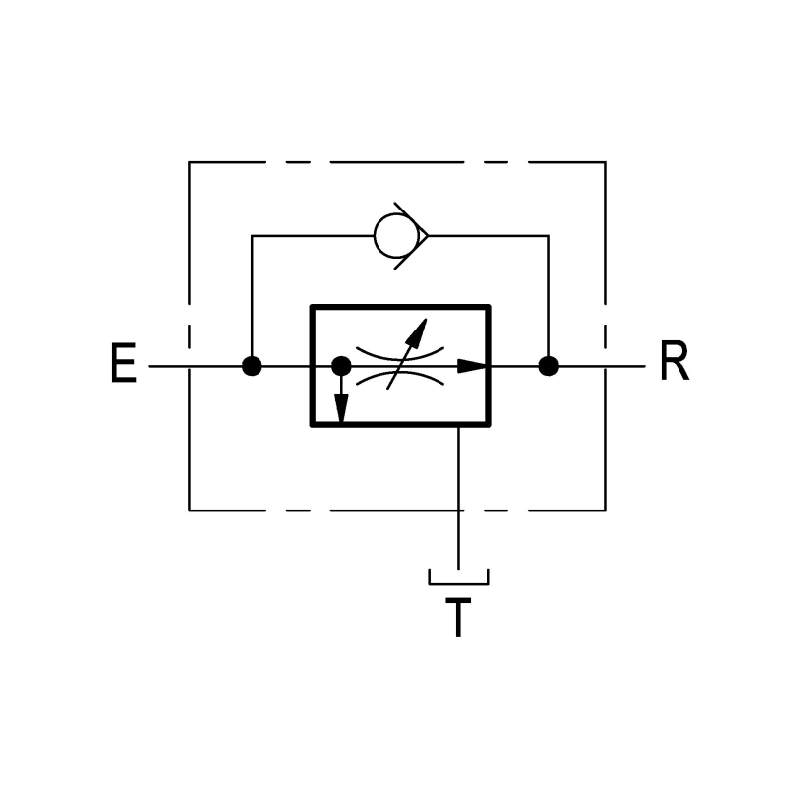

Product family classification Flow regulator 3 way, pressure compensated with check valve for free reverse flow
Product family type VRFC3
Product family VRFC3-VU (G 3/8-G 1/2)
Ports number 3
Type of connection Threaded connection
Direct - Pilot Pilot operated
Adjustment options Graduated handknob
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 90 l/min (24 gpm)
  • Port: G 1/2
Manual (1)
PDF Flow regulator, 3-way, pressure compensated, with check valve for free reverse flow – VRFC3-VU (G 3/8, G 1/2) (EN)
