R930067628
0M380370040000B-VRFC3-VSBN-V-BPE-NA-34-B

R930067628
  • Availability: on request
  • Weight: 2.80 KG
  • Part number: R930067628
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930067628
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 105-210
Max. flow 150 l/min
Net weight 2.8 kg
Nominal flow 150 l/min
Operating pressure, max. 210 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 210 bar
Other properties
Adjustment options Handknob and locknut
Direct - Pilot Pilot operated
Hydraulic fluid HL,HLP
Ports G 3/4
Ports number 3
Product family VRFC3-VS-BPE (G 3/4)

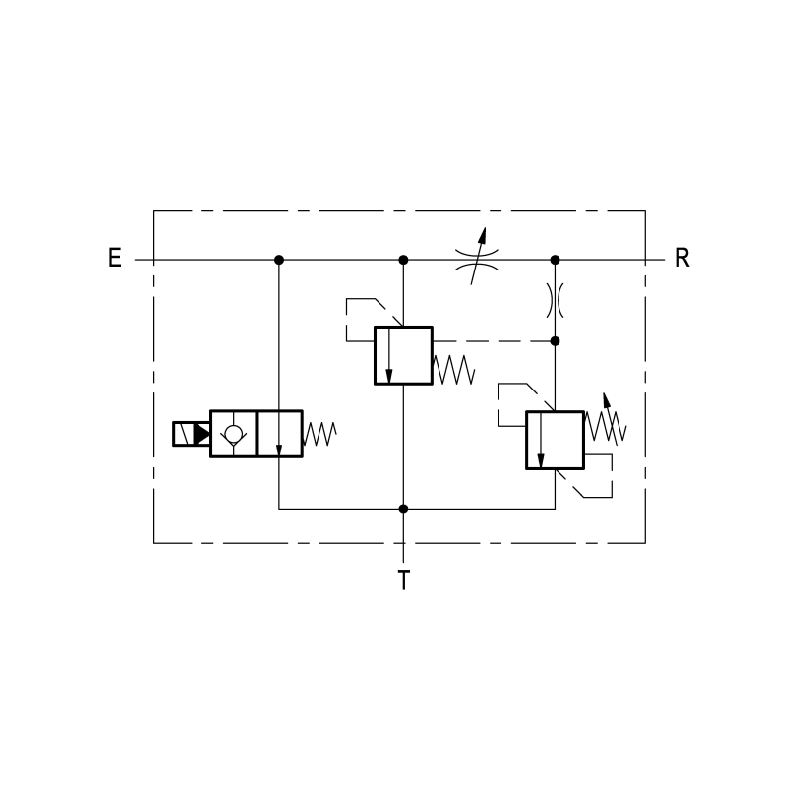

Product family classification Flow regulator 3 way, pressure compensated with relief and solenoid by-pass
Product family type VRFC3
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Port: G 3/4
