R930068961
0M360370030000D-VRFC3-VSBN-V-VEI2A-NA-1&

R930068961
  • Availability: on request
  • Weight: 1.65 KG
  • Part number: R930068961
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930068961
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.65 kg
Operating pressure, max. 210 bar
Max. flow 90 l/min
Nominal flow 90 l/min
Adjustable pressure range 105-210
Pressure setting 210 bar
Pressure pre-setting With pressure pre-setting
Other properties

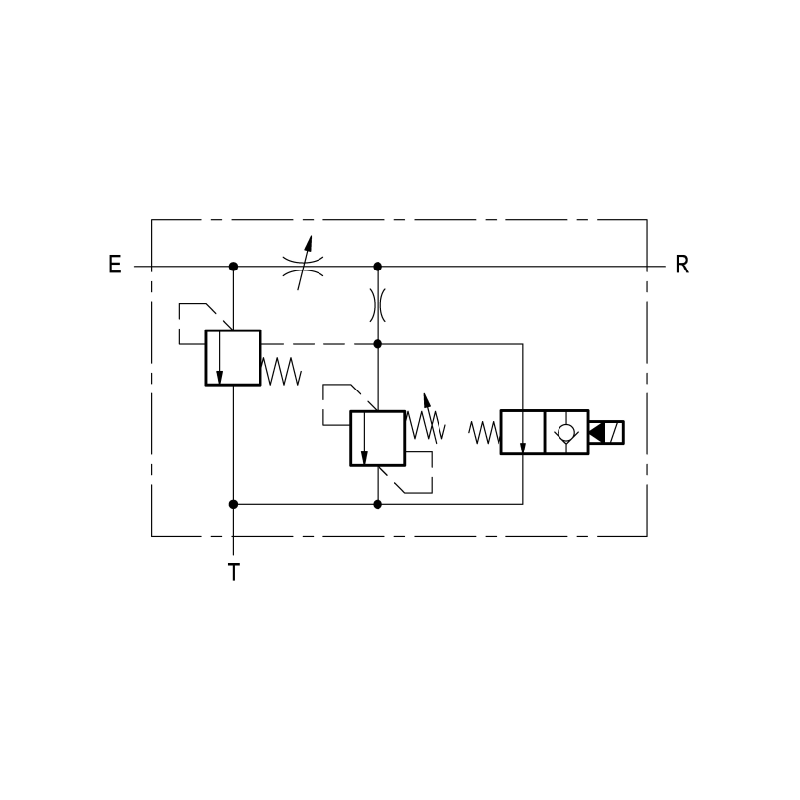

Product family classification Flow regulator 3 way, pressure compensated with relief and solenoid control
Product family type VRFC3
Product family VRFC3-VS-VEI
Ports number 3
Type of connection Threaded connection
Direct - Pilot Pilot operated
Adjustment options Handknob and locknut
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 90 l/min (24 gpm)
  • Port: G 1/2
DataSheet (1)
PDF Flow regulator, 3-way, pressure compensated relief and solenoid control – VRFC3-VS-VEI (G 1/2, G 3/4, G1) (EN)
