R930004254
0M330340040000A VRFC3-VSBN-M-34-A

R930004254
  • Availability: on request
  • Weight: 2.17 KG
  • Part number: R930004254
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004254
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2.17 kg
Operating pressure, max. 210 bar
Max. flow 150 l/min
Nominal flow 150 l/min
Adjustable pressure range 35-210
Pressure setting 210 bar
Pressure pre-setting With pressure pre-setting
Other properties

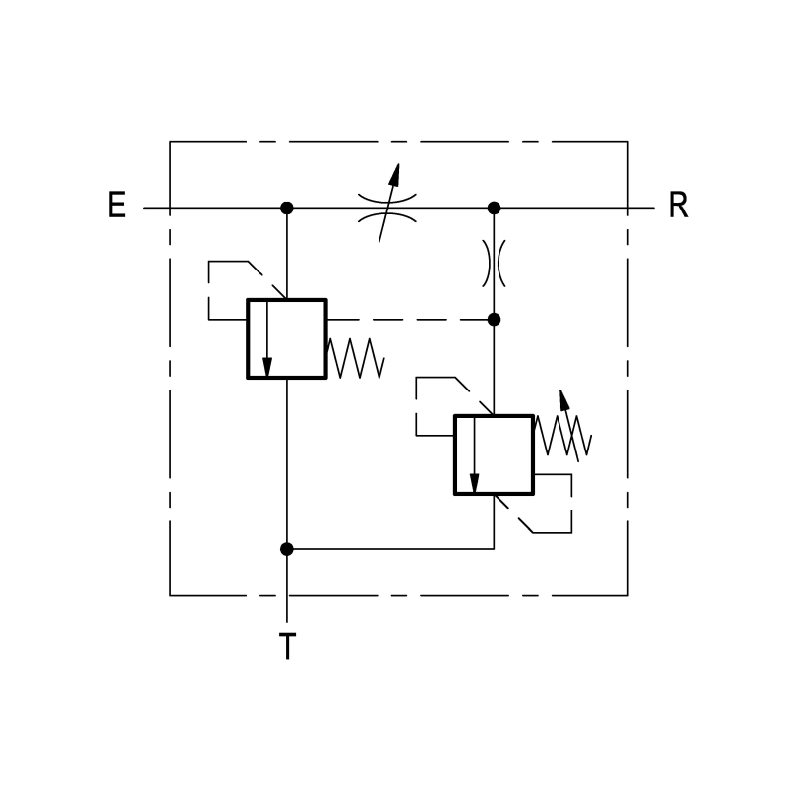

Product family classification Flow regulator 3 way, pressure compensated with relief
Product family type VRFC3
Product family VRFC3-VS (G 3/8-G 1/2-G 3/4-G 1)
Ports number 3
Type of connection Threaded connection
Direct - Pilot Pilot operated
Adjustment options Graduated handknob
Ports G 3/4
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Port: G 3/4
Manual (1)
PDF Flow regulator, 3-way, pressure compensated, with relief – VRFC3-VS (G 3/8, G 1/2, G 3/4, G1) (EN)
