R930004190
0M2203800200000 VRFC2-D-38

R930004190
  • Availability: on request
  • Weight: 0.95 KG
  • Part number: R930004190
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004190
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 950 g
Operating pressure, max. 210 bar
Max. flow 30 l/min
Nominal flow 30 l/min
Other properties

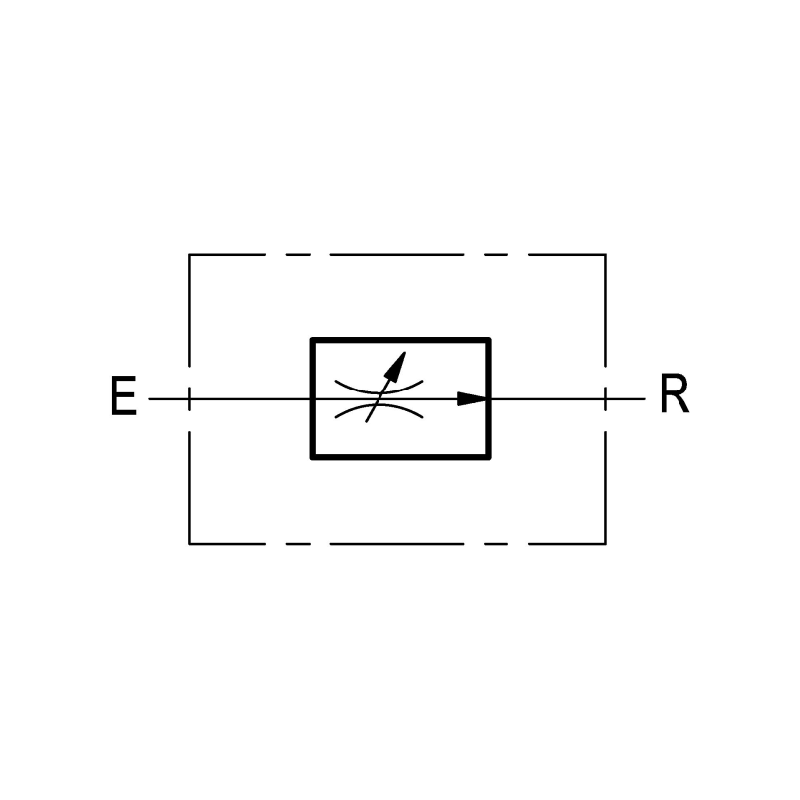

Product family classification Flow regulator 2 way, pressure compensated
Product family type VRFC2
Product family VRFC2
Ports number 2
Type of connection Threaded connection
Direct - Pilot Pilot operated
Adjustment options Screw and locknut
Ports G 3/8
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Port: G 3/8
Manual (1)
PDF Flow regulator, 2-way, pressure compensated – VRFC2 (G 3/8, G 1/2,G 3/4, G1) (EN)
