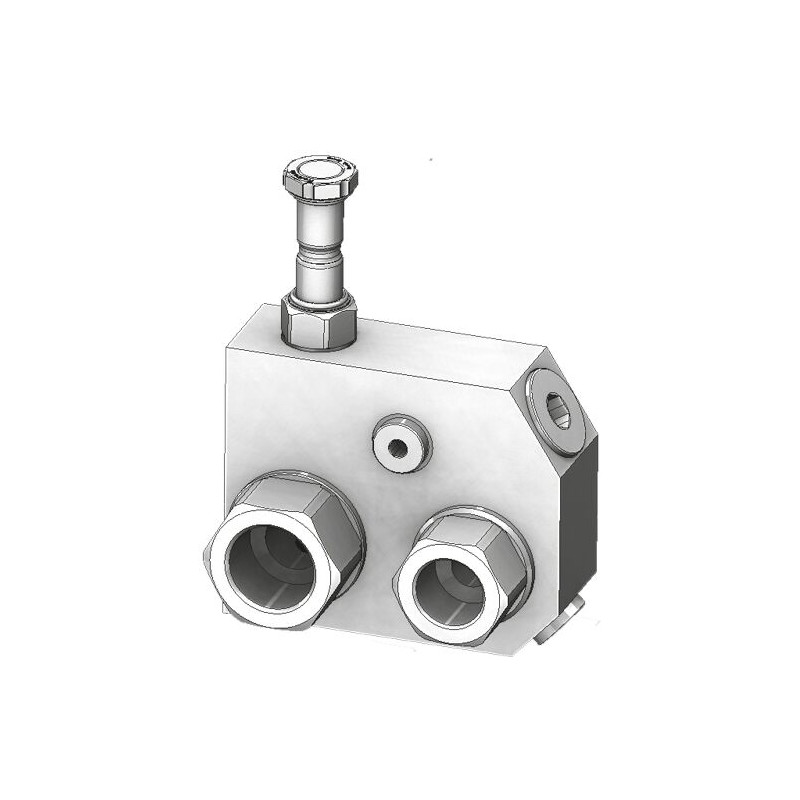

R930062927
089111000501000-A-VALV-BY-PASS-80-G114-&

R930062927
  • Availability: on request
  • Weight: 4.22 KG
  • Part number: R930062927
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930062927
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 250 l/min
Net weight 4.221 kg
Nominal flow 250 l/min
Operating pressure, max. 350 bar
Other properties
Coil D36
Coil integrated To be ordered separately
Direct - Pilot Pilot operated
Hydraulic fluid HL,HLP
Ports G 1
Ports number 4
Product family By-pass
Product family classification By-pass valve flangeable on axial piston pump A17FO series 10
Product family type BY-PASS VALVE
Product type BY-PASS VALVE
Sealing material FKM
Type of connection Flange connection
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 250 l/min (66 gpm)
  • Flangeable
