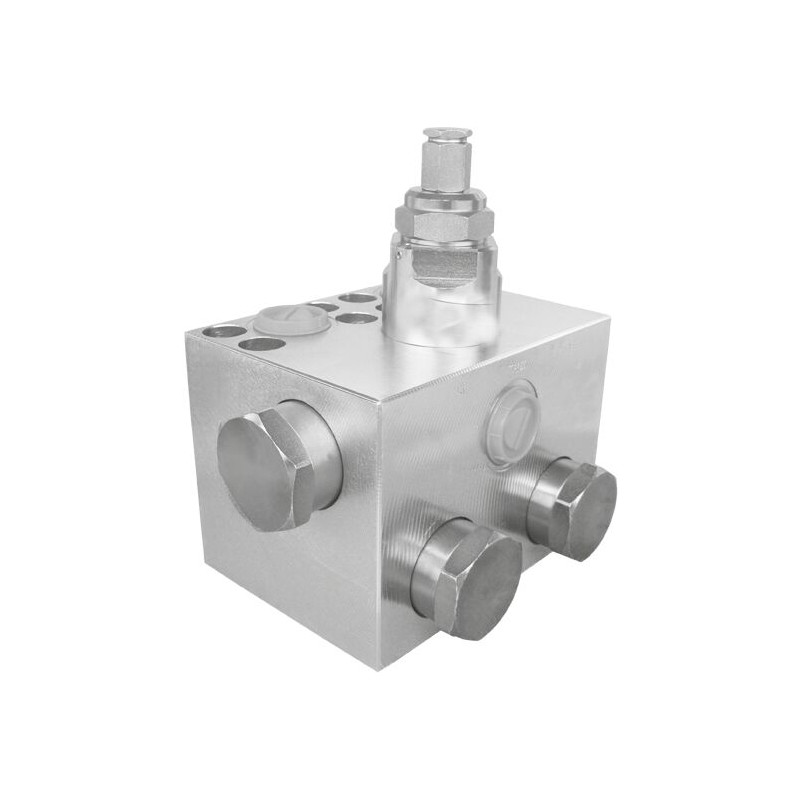

R930005838
088116030435000 A-VAA-CC-42-FM

R930005838
  • Availability: on request
  • Weight: 12.29 KG
  • Part number: R930005838
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 3.

R930005838
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 12.29 kg
Operating pressure, max. 350 bar
Max. flow 200 l/min
Nominal flow 200 l/min
Adjustable pressure range 70-350
Pressure setting 300 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Dual cross over relief, pilot operated, with anti-cavitation check valves, flangeable to motor
Product family type VAA
Product family A-VAA-CC-42-FMA2FE-45-56-63 series
Ports number 4
Type of connection Flange connection
Direct - Pilot Pilot operated
Adjustment options Leakproof hexagon socket screw
Ports Special flange
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 200 l/min (53 gpm)
  • Flangeable
Manual (1)
PDF Dual cross over relief, pilot operated, with anti-cavitation check valves, flangeable to motor – A-VAA-CC-42-FM (EN)
