R930004104
088111030440000-A-VAA-CC-150-34-40

R930004104
  • Availability: on request
  • Weight: 6.03 KG
  • Part number: R930004104
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004104
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 6.03 kg
Operating pressure, max. 350 bar
Max. flow 150 l/min
Nominal flow 150 l/min
Adjustable pressure range 35-420
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties

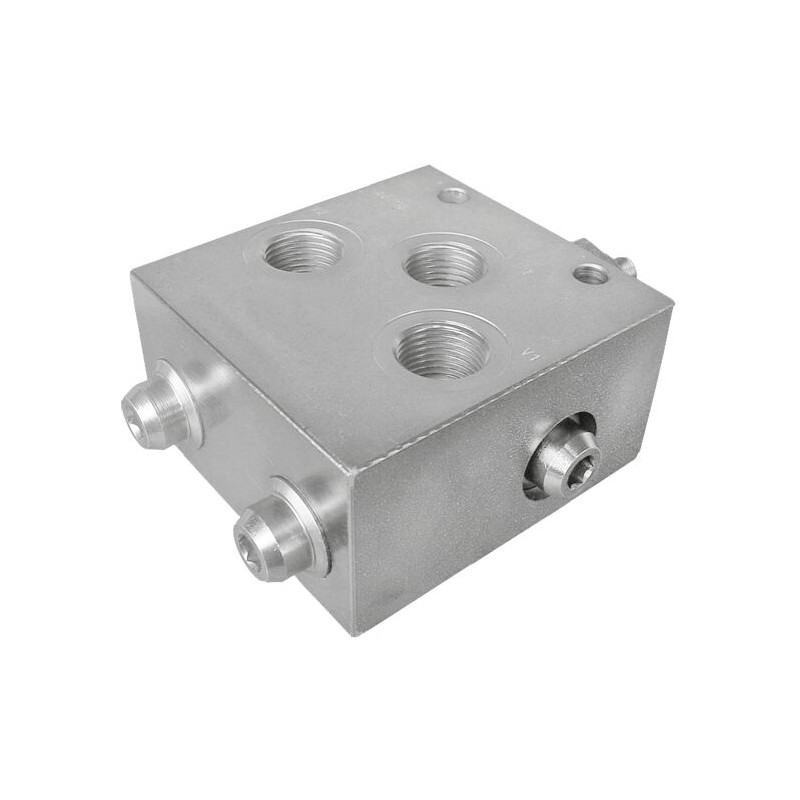

Product family classification Dual cross over relief, pilot operated with anti-cavitation check valves
Product family type VAA
Product family A-VAA-CC-150
Ports number 5
Type of connection Threaded connection
Direct - Pilot Pilot operated
Adjustment options Leakproof hexagon socket screw
Ports G 3/4
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Port: G 3/4
Manual (1)
PDF Dual cross over relief, pilot operated, with anti-cavitation check valves – A-VAA-CC-150 (EN)
