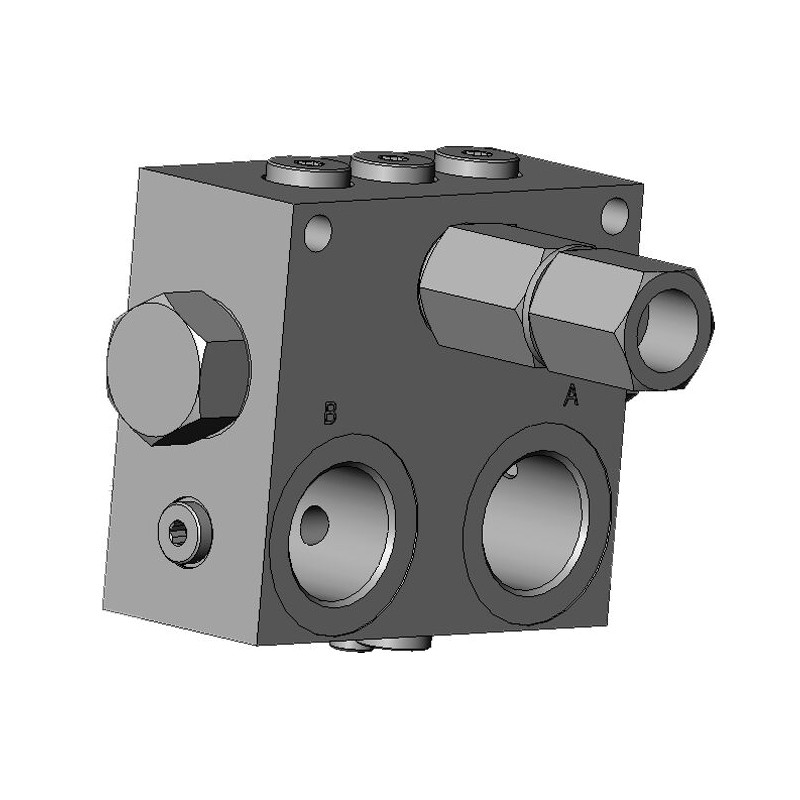

R930004092
086405000500000 A-VSL-R-100-R

R930004092
  • Availability: on request
  • Weight: 3.73 KG
  • Part number: R930004092
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004092
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 5-25
Max. flow 90 l/min
Net weight 3.73 kg
Nominal flow 90 l/min
Operating pressure, max. 350 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 12 bar
Other properties
Direct - Pilot Pilot operated
Hydraulic fluid HL,HLP
Ports G 1
Ports number 5
Product family Purge
Product family classification Purge valve for hydrostatic transmission
Product family type VSL
Product type VSL
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 90 l/min (24 gpm)
  • Port: G 1
