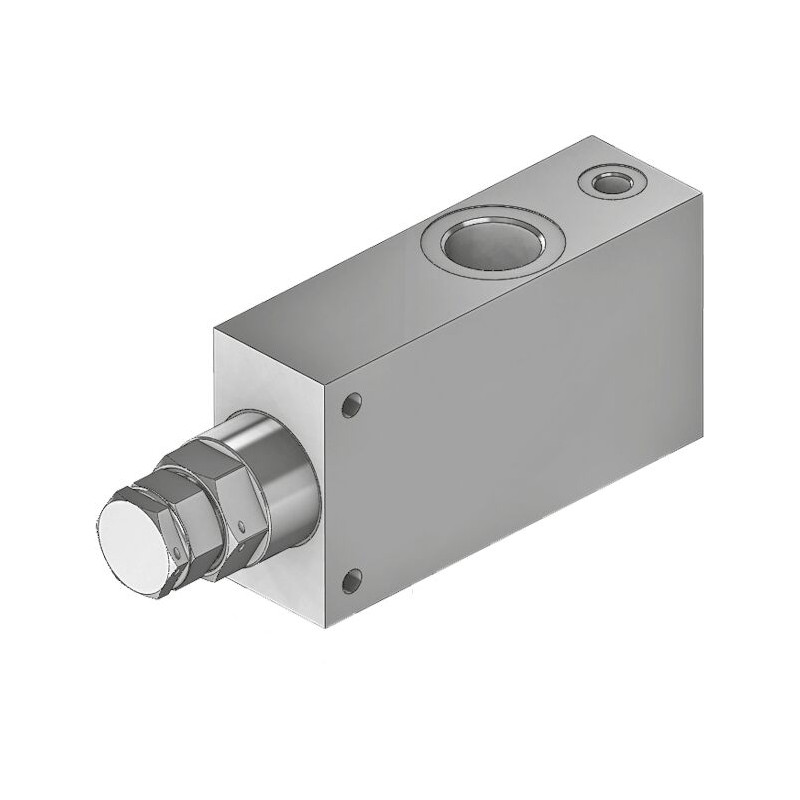

R930050628
08499113053500A AVBSO-SE-CCAP42-STCR-10&

R930050628
  • Availability: on request
  • Weight: 5.68 KG
  • Part number: R930050628
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930050628
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 5.682 kg
Operating pressure, max. 410 bar
Max. flow 350 l/min
Nominal flow 350 l/min
Adjustable pressure range 120-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Single counterbalance, vented
Product family type VBSO
Product family A-VBSO-SE-CCAP-42
Ports number 4
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 4:1
Ports G 1
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect relief compensated
Product type VBSO-42
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 350 l/min (93 gpm)
  • Port: G 1
Manual (1)
PDF Single counterbalance, vented – A-VBSO-SE-CCAP-42 (G 1) (EN)
