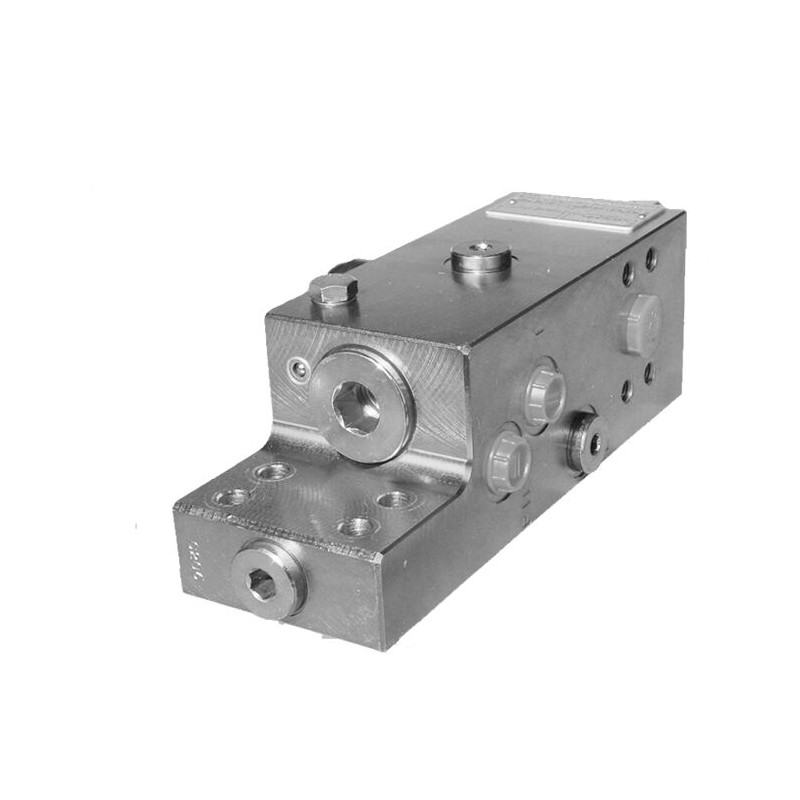

R930050749
08492603631100A A-VBC-33-FC-12SAE6000-1&

R930050749
  • Availability: on request
  • Weight: 6.00 KG
  • Part number: R930050749
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930050749
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 6-15
Max. flow 150 l/min
Net weight 6 kg
Nominal flow 150 l/min
Operating pressure, max. 420 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 7.5 bar
Other properties
Adjustment options Leakproof hexagon socket screw
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Ports 1/2” SAE6000
Ports number 9
Product family A-VBC-33-FC (1/2)
Product family Check and metering
Product family classification Check and metering valve flangeable
Product family type VBC
Product type VBC
Sealing material NBR
Type of connection Flange connection
Features
  • Maximum operating pressure 420 bar (6000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Flange 1/2” SAE6000
