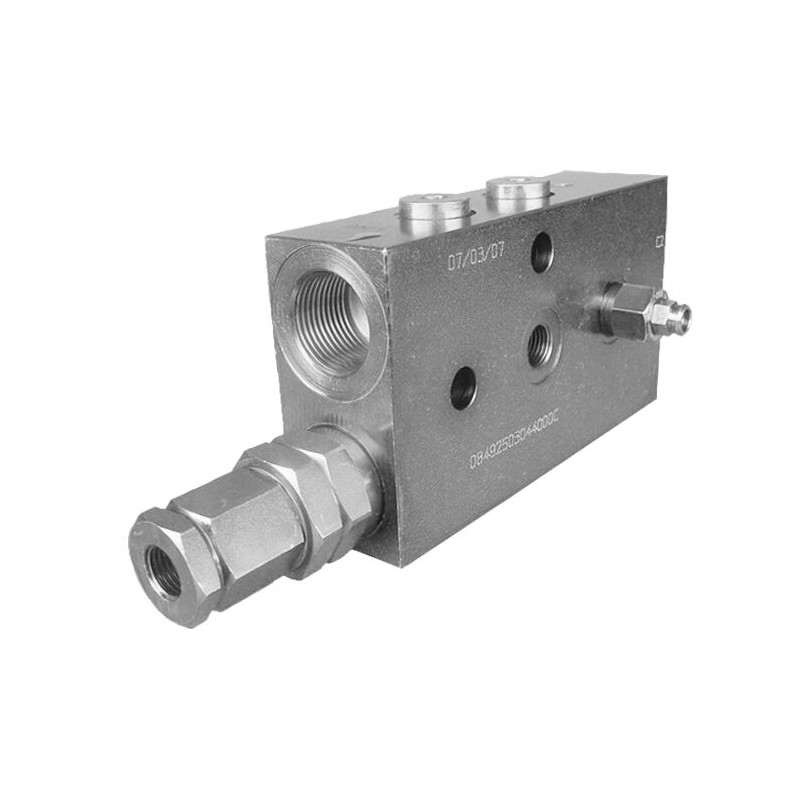

R930050748
08492503044000D A-VBC-33-T-E-34-40-SX-D

R930050748
  • Availability: on request
  • Weight: 3.37 KG
  • Part number: R930050748
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930050748
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.37 kg
Operating pressure, max. 420 bar
Max. flow 150 l/min
Nominal flow 150 l/min
Adjustable pressure range 7-20
Pressure setting 7.5 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Check and metering valve
Product family type VBC
Product family A-VBC-33-SX
Ports number 5
Spool Poppet Poppet type
Type of connection Threaded connection
Direct - Pilot External pilot operated
Adjustment options Inner hexagon socket screw protected by locking nut
Ports G 3/4
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Check and metering
Product type VBC
Features
  • Maximum operating pressure 420 bar (6000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Port: G 3/4
Manual (1)
PDF Check and metering valve – A-VBC-33-SX (G 3/4) (EN)
