R930006289

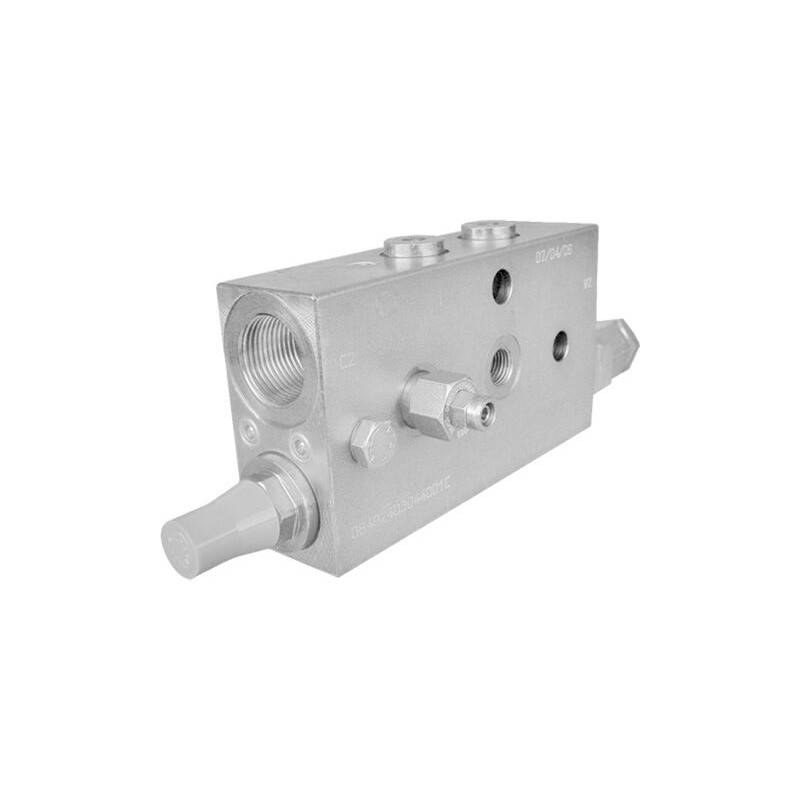

08492403044000D AVBC33TE34-40-DX-D

R930006289
  • Availability: on request
  • Weight: 3.36 KG
  • Part number: R930006289
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930006289
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 7-20
Max. flow 150 l/min
Net weight 3.36 kg
Nominal flow 150 l/min
Operating pressure, max. 420 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 7.5 bar
Other properties
Adjustment options Inner hexagon socket screw protected by locking nut
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Ports G 3/4
Ports number 5
Product family A-VBC-33-DX
Product family Check and metering
Product family classification Check and metering valve
Product family type VBC
Product type VBC
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 420 bar (6000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Port: G 3/4
