R930006792

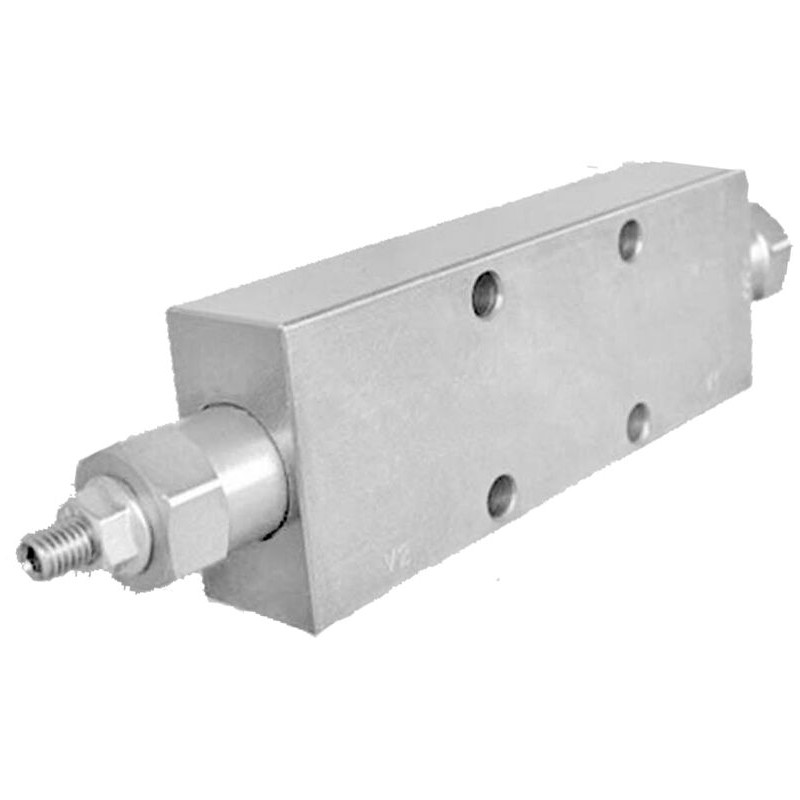

084812030220000 A-VBSO-DE-30-FCB-PI-38-&

R930006792
  • Availability: on request
  • Weight: 1.88 KG
  • Part number: R930006792
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930006792
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 60-210
Max. flow 60 l/min
Net weight 1.882 kg
Nominal flow 60 l/min
Operating pressure, max. 410 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 200 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 4.2:1
Ports Special flange
Ports number 4
Product family A-VBSO-DE-30-FCB-PI
Product family Double effect
Product family classification Dual counterbalance
Product family type VBSO
Product type VBSO-30
Sealing material NBR
Type of connection Flange connection
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Flangeable
