R930003633

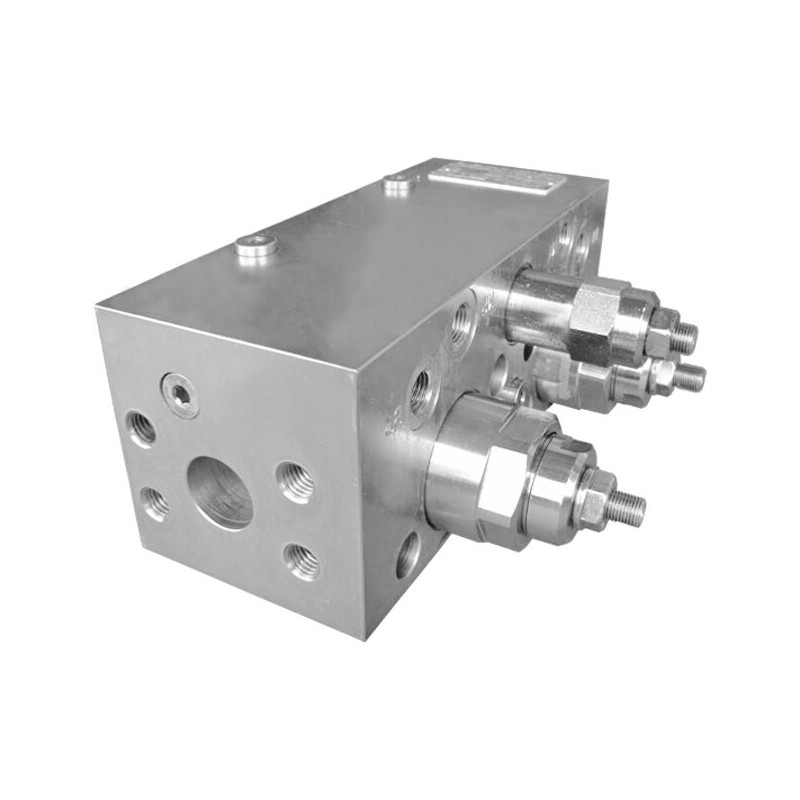

084633037335000 A-VBSN-20A-DE4:1VFRPFA2&

R930003633
  • Availability: on request
  • Weight: 12.56 KG
  • Part number: R930003633
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 3.

R930003633
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 140-350
Max. flow 320 l/min
Net weight 12.56 kg
Nominal flow 320 l/min
Operating pressure, max. 350 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 350 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 4:1
Ports 1” SAE 6000
Ports number 8
Product family A-VBSN-DE-VF-20A-FM (A2FE-107-125)
Product family Double effect with brake release port
Product family classification Dual counterbalance with pressure reducer for brake release port
Product family type VBSN
Product type VBSN
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 320 l/min (85 gpm)
  • Flange 1" SAE 6000
