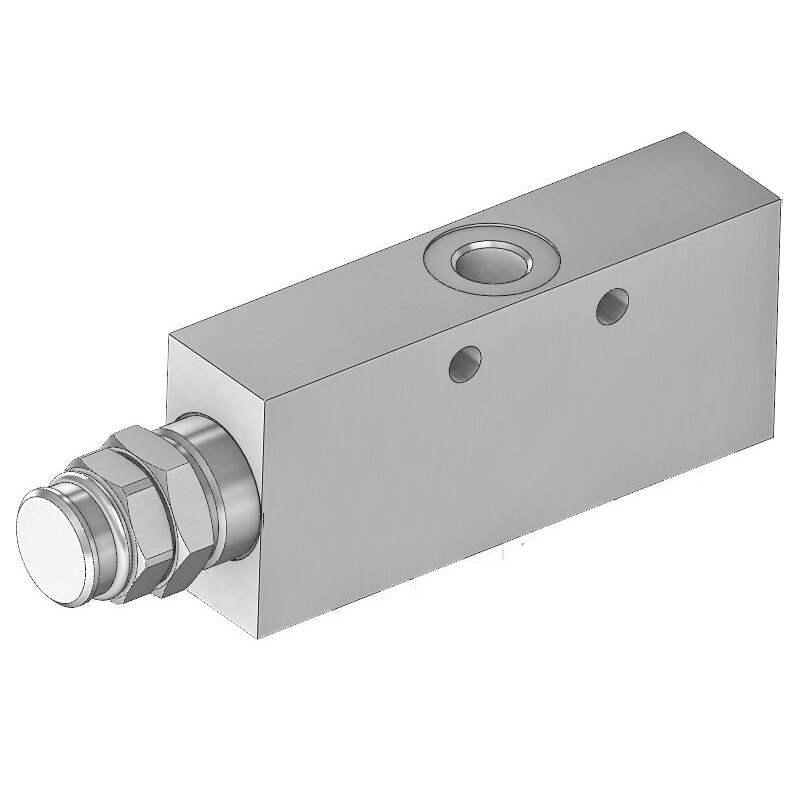

R930004316
084598030935000 A-VBSO-SE-CCAP78-4A-14-&

R930004316
  • Availability: on request
  • Weight: 0.89 KG
  • Part number: R930004316
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930004316
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 886 g
Operating pressure, max. 350 bar
Max. flow 40 l/min
Nominal flow 40 l/min
Adjustable pressure range 180-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Single counterbalance, vented
Product family type VBSO
Product family A-VBSO-SE-CCAP-78
Ports number 5
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 4.1:1
Ports G 1/4
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect relief compensated
Product type VBSO-78
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 40 l/min (11 gpm)
  • Port: G 1/4
Manual (1)
PDF Single counterbalance, vented – A-VBSO-SE-CCAP-78 (G 1/4) (EN)
