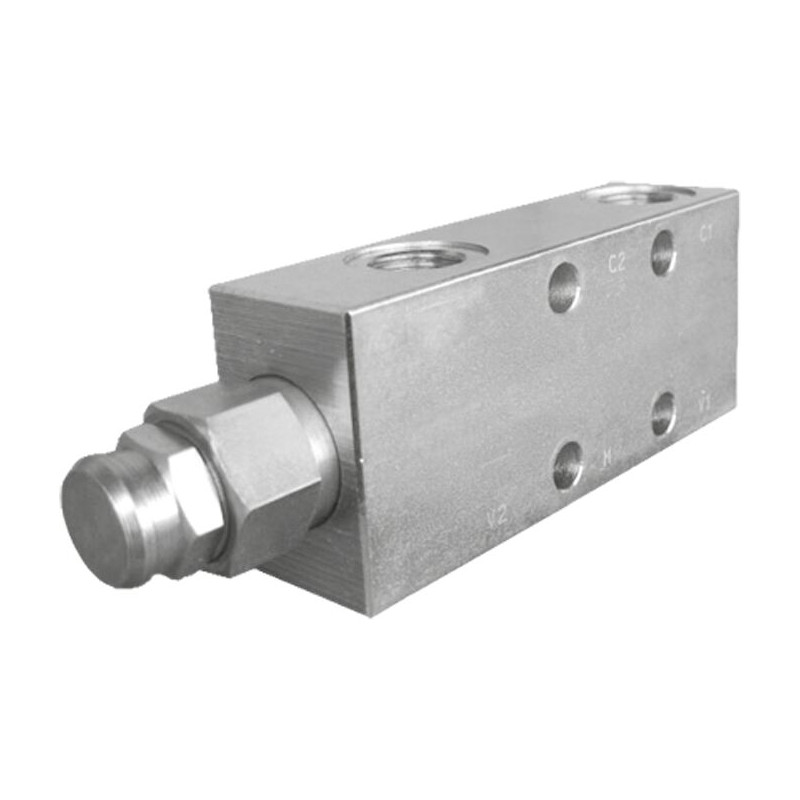

R930007234
08458713033500D A-VBSO-SE-33-FC1-PLVUR1&

R930007234
  • Availability: on request
  • Weight: 2.39 KG
  • Part number: R930007234
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930007234
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2.39 kg
Operating pressure, max. 410 bar
Max. flow 150 l/min
Nominal flow 150 l/min
Adjustable pressure range 150-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Single counterbalance
Product family type VBSO
Product family A-VBSO-SE-33-PL-FC1
Ports number 6
Type of connection Flange connection
Direct - Pilot External pilot operated
Pilot ratio 4:1
Ports Special flange
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect
Product type VBSO-33
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Flangeable
Manual (1)
PDF Single counterbalance – A-VBSO-SE-33-PL-FC1 (EN)
