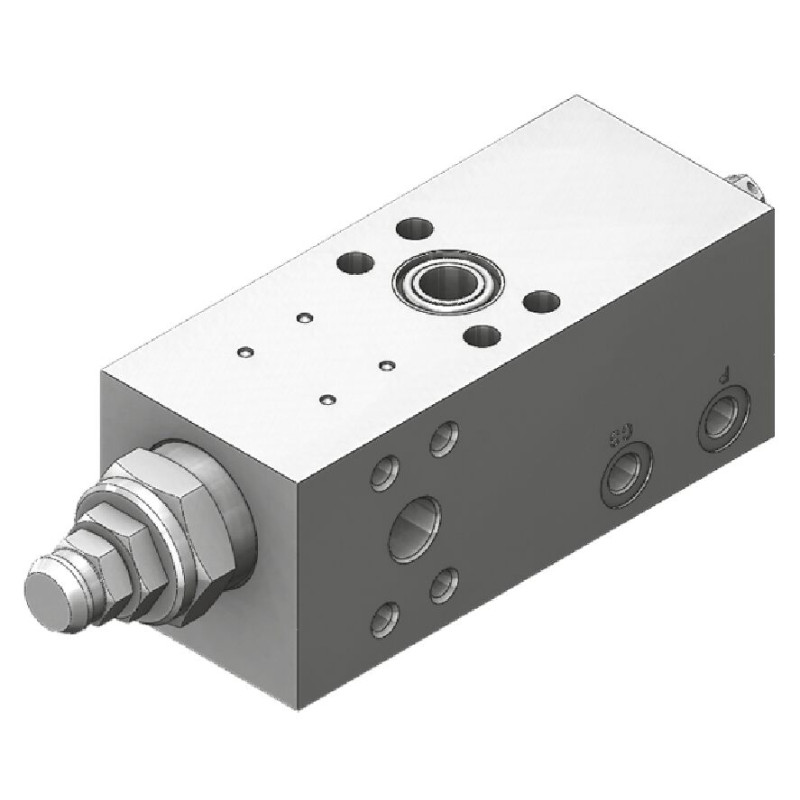

R930051159
08453813643500E AVBSOSE42FA-114-SAE35TAE

R930051159
  • Availability: on request
  • Weight: 13.04 KG
  • Part number: R930051159
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 3.

R930051159
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 13.036 kg
Operating pressure, max. 410 bar
Max. flow 350 l/min
Nominal flow 350 l/min
Adjustable pressure range 250-500
Pressure setting 500 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Single counterbalance with brake release port for winches flangeable
Product family type VBSO
Product family A-VBSO-SE-FA-42
Ports number 7
Type of connection Flange connection
Direct - Pilot External pilot operated
Pilot ratio 13:1
Ports 1 1/4” SAE 6000
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect with brake release port
Product type VBSO-42
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 350 l/min (93 gpm)
  • Flangeable
Manual (1)
PDF Single counterbalance with brake release port for winches, flangeable – A-VBSO-SE-FA-42 (SAE 6000) (EN)
