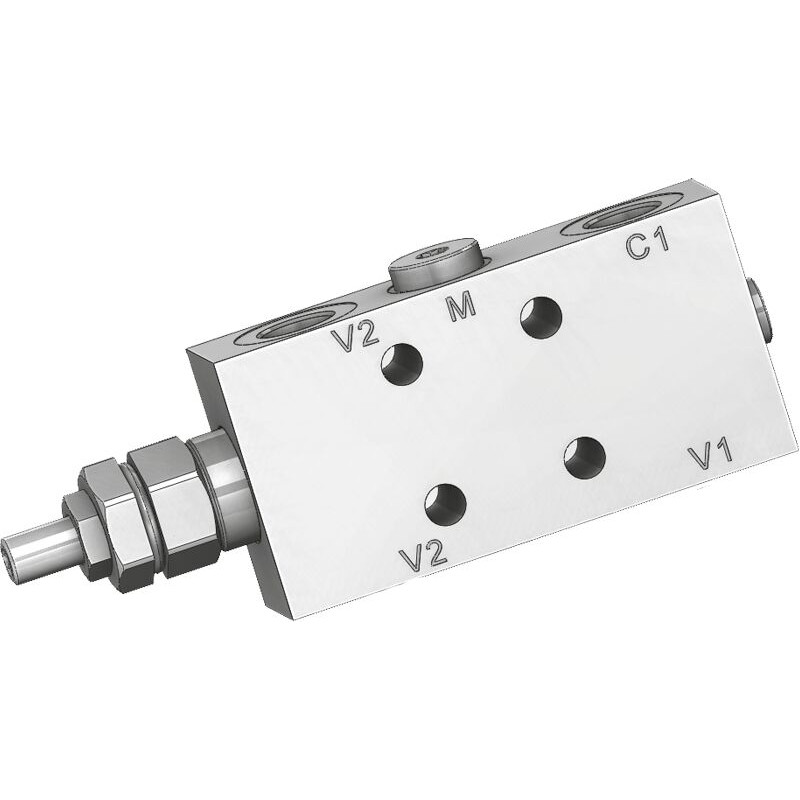

R930007174
08451903033500B A-VBSO-SE-30-CCFC1-PL12&

R930007174
  • Availability: on request
  • Weight: 1.71 KG
  • Part number: R930007174
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930007174
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 100-350
Max. flow 60 l/min
Net weight 1.708 kg
Nominal flow 60 l/min
Operating pressure, max. 410 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 350 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 4.2:1
Ports Special flange
Ports number 6
Product family A-VBSO-SE-CC-30-PL-FC1
Product family Single effect relief compensated
Product family classification Single counterbalance, relief compensated
Product family type VBSO
Product type VBSO-30
Sealing material NBR
Type of connection Flange connection
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Flangeable
