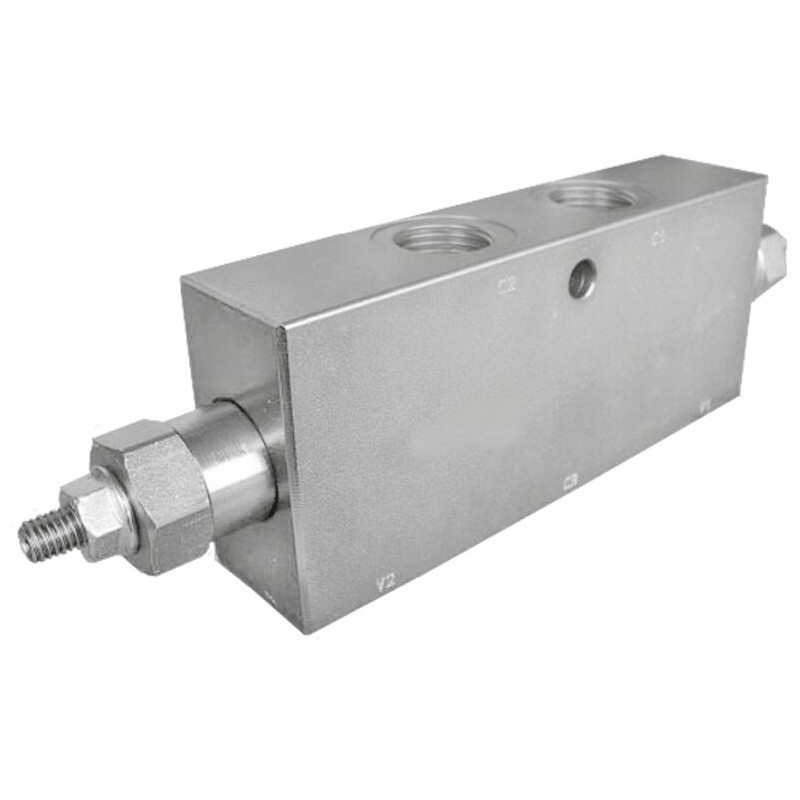

R930003387
084410850335000 A-VBSO-DE-30-CSLVF11:1-&

R930003387
  • Availability: on request
  • Weight: 2.49 KG
  • Part number: R930003387
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930003387
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2.487 kg
Operating pressure, max. 410 bar
Max. flow 60 l/min
Nominal flow 60 l/min
Adjustable pressure range 60-350
Other properties
Product family classification Dual counterbalance, with brake release port
Product family type VBSO
Product family A-VBSO-DE-VF-30
Ports number 4
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 11:1
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Double effect with brake release port
Product type VBSO-30
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Port: G 1/2
Manual (1)
PDF Dual counterbalance, with brake release port – A-VBSO-DE-VF-30 (G 1/2, G 3/4) (EN)
