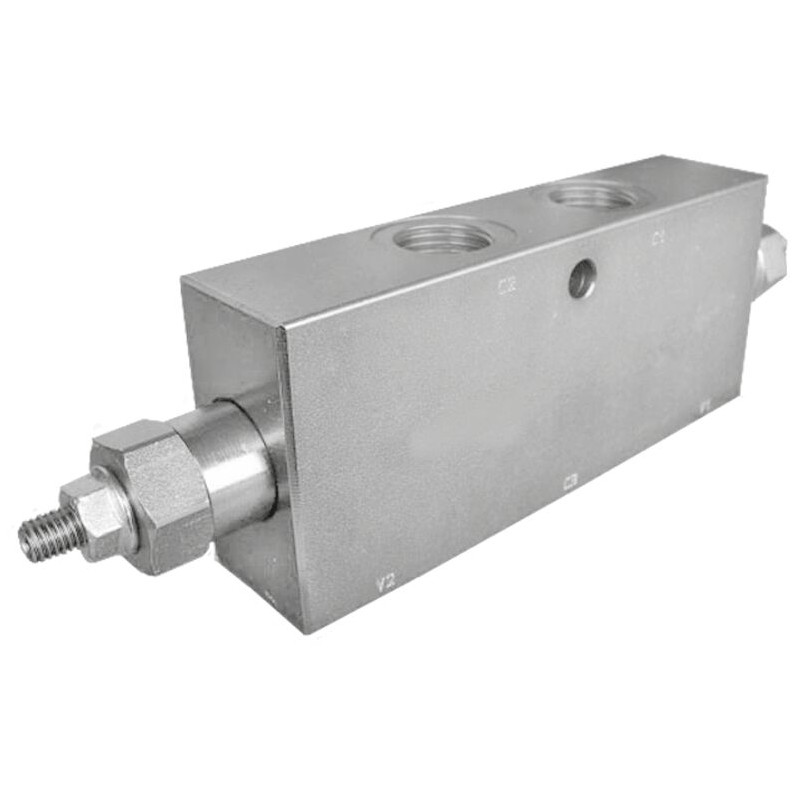

R930003384
084410030335000 A-VBSO-DE-30-CSL-VF-1235

R930003384
  • Availability: on request
  • Weight: 2.51 KG
  • Part number: R930003384
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R930003384
Physical size and weight
Adjustable pressure range 180-350
Max. flow 60 l/min
Net weight 2.51 kg
Nominal flow 60 l/min
Operating pressure, max. 410 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 4.2:1
Ports G 1/2
Ports number 4
Product family A-VBSO-DE-VF-30
Product family Double effect with brake release port
Product family classification Dual counterbalance, with brake release port
Product family type VBSO
Product type VBSO-30
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Port: G 1/2
