R930007273

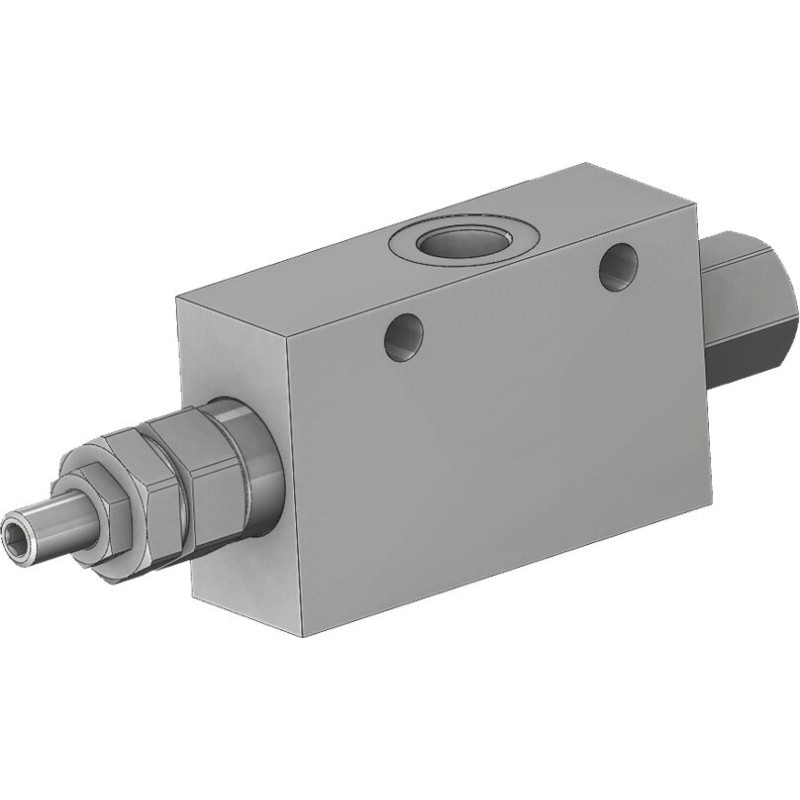

08439603033500A A-VBSO-SE-30-CC-12-35-A

R930007273
  • Availability: on request
  • Weight: 1.55 KG
  • Part number: R930007273
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930007273
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.55 kg
Operating pressure, max. 410 bar
Max. flow 60 l/min
Nominal flow 60 l/min
Adjustable pressure range 100-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Single counterbalance, relief compensated
Product family type VBSO
Product family A-VBSO-SE-CC-30
Ports number 3
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 4.2:1
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect relief compensated
Product type VBSO-30
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Port: G 1/2
Manual (1)
PDF Single counterbalance, relief compensated – A-VBSO-SE-CC-30 (G 3/8, G 1/2) (EN)
