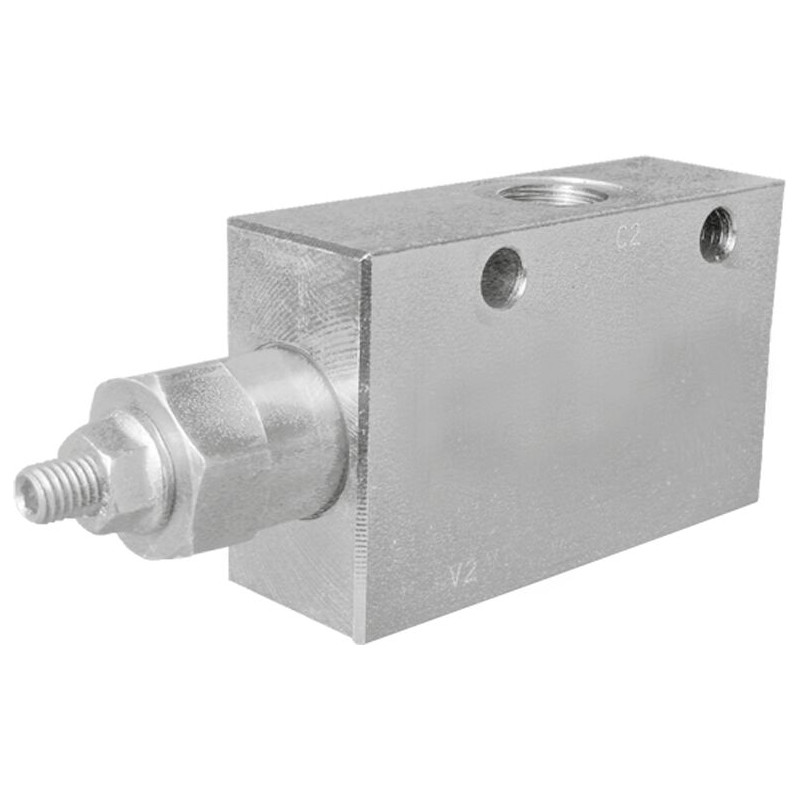

R930003273
08410103093500B A-VBSO-SE-30-14-35-B

R930003273
  • Availability: on request
  • Weight: 1.15 KG
  • Part number: R930003273
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930003273
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 180-350
Max. flow 60 l/min
Net weight 1.15 kg
Nominal flow 60 l/min
Operating pressure, max. 410 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 350 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 4.2:1
Ports G 1/4
Ports number 3
Product family A-VBSO-SE-30
Product family Single effect
Product family classification Single counterbalance
Product family type VBSO
Product type VBSO-30
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Port: G 1/4
