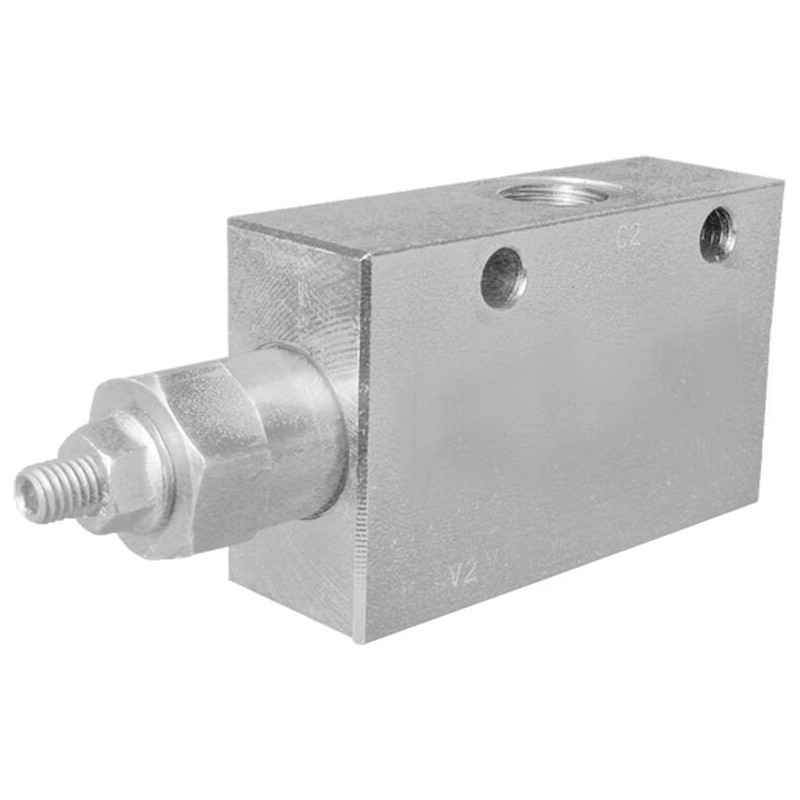

R987234306
08410103023500B A-VBSO-SE-30-38-35-B

R987234306
  • Availability: on request
  • Weight: 1.10 KG
  • Part number: R987234306
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R987234306
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.098 kg
Operating pressure, max. 410 bar
Max. flow 60 l/min
Nominal flow 60 l/min
Adjustable pressure range 180-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Single counterbalance
Product family type VBSO
Product family A-VBSO-SE-30
Ports number 3
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 4.2:1
Ports G 3/8
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect
Product type VBSO-30
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Port: G 3/8
Manual (1)
PDF Single counterbalance – A-VBSO-SE-30 (G 1/4, G 3/8, G 1/2) (EN)
