R930006758

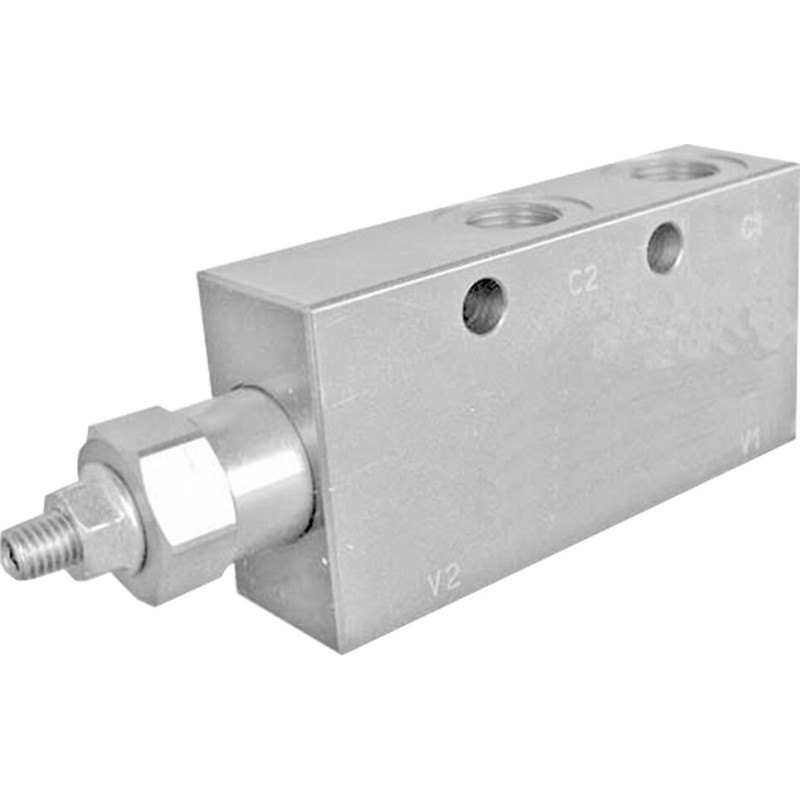

083959030320000 A-VBSO-SE30-PI-PL-12-20

R930006758
  • Availability: on request
  • Weight: 1.72 KG
  • Part number: R930006758
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930006758
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.72 kg
Operating pressure, max. 410 bar
Max. flow 60 l/min
Nominal flow 60 l/min
Adjustable pressure range 60-210
Pressure setting 200 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Single counterbalance
Product family type VBSO
Product family A-VBSO-SE-30-PI-PL
Ports number 5
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 4.2:1
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect
Product type VBSO-30
Features
  • Maximum operating pressure 410 bar (5945 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Port: G 1/2
Manual (1)
PDF Single counterbalance, A-VBSO-SE-30-PI-PL (EN)
