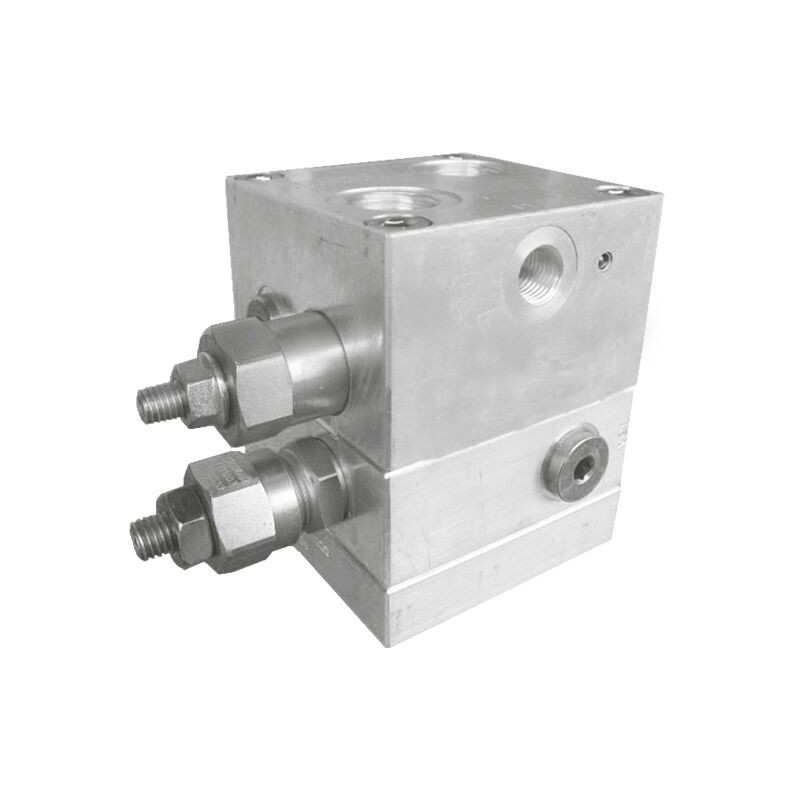

R930002745
06030101800000C VBSO-DE30-VFVSDI30FM508&

R930002745
  • Availability: on request
  • Weight: 2.45 KG
  • Part number: R930002745
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002745
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2.45 kg
Operating pressure, max. 210 bar
Max. flow 60 l/min
Nominal flow 60 l/min
Adjustable pressure range 60-210
Pressure setting 200 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Dual counterbalance and cross over relief with brake release port
Product family type VBSO
Product family VBSO-DE-VF-30-VSDI-FM
Ports number 5
Spool Poppet Poppet type
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 4.2:1
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Double effect with brake release port
Product type VBSO-30
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Port: G 1/2
Manual (1)
PDF Dual counterbalance and cross over relief with brake release port – VBSO-DE-VF-30-VSDI-FM (EN)
